알루미늄 전해 커패시터
| 사진: | 제조업체 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

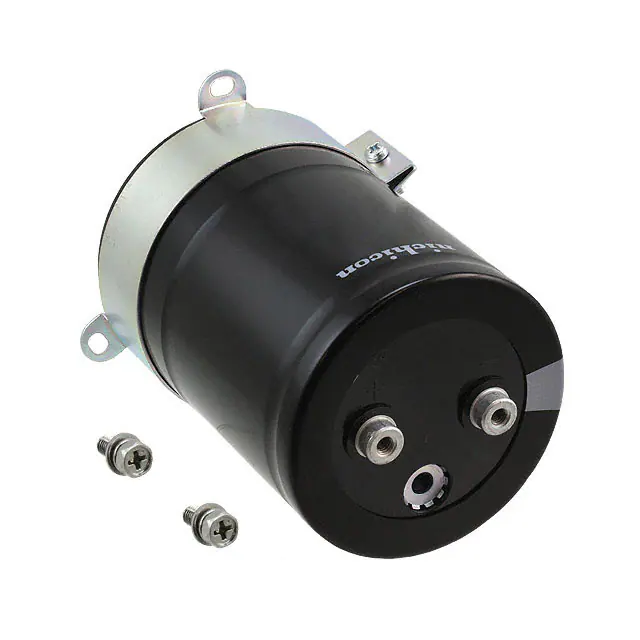

LNT1H334MSECAP ALUM 330000UF 20% 50V SCREW Nichicon |
2,426 | - |
RFQ |
데이터시트 |
Bulk | LNT | Active | 330000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.3 A @ 120 Hz | 27.945 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
.JPG)
|
LNY2W392MSEGCAP ALUM 3900UF 20% 450V SCREW Nichicon |
3,049 | - |
RFQ |
데이터시트 |
Bulk | LNY | Active | 3900 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.5 A @ 120 Hz | 18.9 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.921 (125.00mm) | - | Chassis Mount |
|

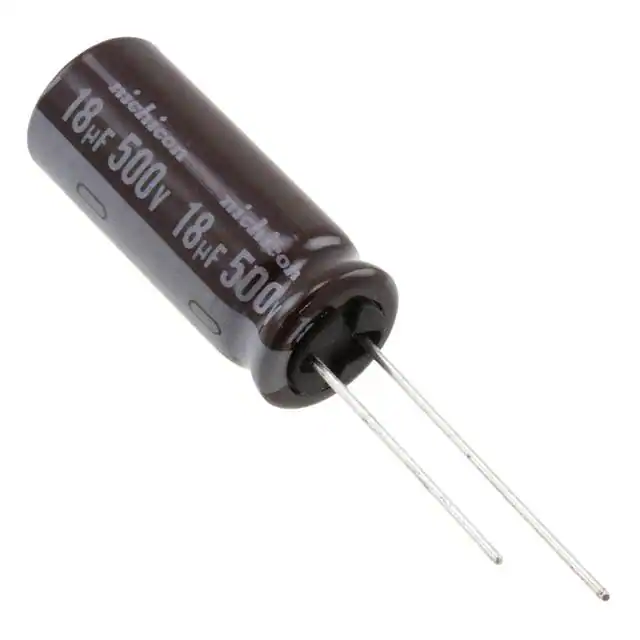

UCY2H180MHDCAP ALUM 18UF 20% 500V RADIAL Nichicon |
2,202 | - |
RFQ |
데이터시트 |
Bulk | UCY | Active | 18 µF | ±20% | 500 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 480 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.299 (33.00mm) | - | Through Hole |
|

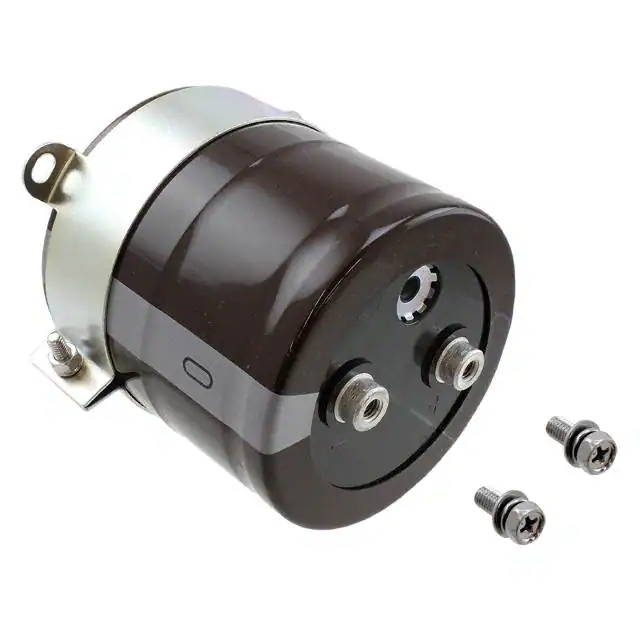

LQR2W272MSEHCAP ALUM 2700UF 20% 450V SCREW Nichicon |
3,693 | - |
RFQ |
데이터시트 |
Bulk | LQR | Active | 2700 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10 A @ 120 Hz | 14 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
UPW1H152MHD6CAP ALUM 1500UF 20% 50V RADIAL Nichicon |
492 | - |
RFQ |
데이터시트 |
Bulk | UPW | Not For New Designs | 1500 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.372 A @ 120 Hz | 2.79 A @ 100 kHz | 25 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
UPW1C562MHD6CAP ALUM 5600UF 20% 16V RADIAL Nichicon |
110 | - |
RFQ |
데이터시트 |
Bulk | UPW | Not For New Designs | 5600 µF | ±20% | 16 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.635 A @ 100 kHz | 16 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
UHE1J122MHD6CAP ALUM 1200UF 20% 63V RADIAL Nichicon |
121 | - |
RFQ |
데이터시트 |
Bulk | UHE | Not For New Designs | 1200 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.512 A @ 120 Hz | 1.89 A @ 100 kHz | 40 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
LNU2W332MSEHCAP ALUM 3300UF 20% 450V SCREW Nichicon |
2,527 | - |
RFQ |
데이터시트 |
Bulk | LNU | Active | 3300 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.4 A @ 120 Hz | 20.16 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 3.858 (98.00mm) | - | Chassis Mount |
|
UCY2H180MHD3CAP ALUM 18UF 20% 500V RADIAL Nichicon |
3,209 | - |
RFQ |
데이터시트 |
Bulk | UCY | Active | 18 µF | ±20% | 500 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 480 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UPW1A822MHDCAP ALUM 8200UF 20% 10V RADIAL Nichicon |
2,322 | - |
RFQ |
데이터시트 |
Bulk | UPW | Not For New Designs | 8200 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.678 A @ 120 Hz | 3.15 A @ 100 kHz | 16 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
LGU2Z221MELYCAP ALUM 220UF 20% 180V SNAP Nichicon |
230 | - |
RFQ |
데이터시트 |
Bulk | LGU | Active | 220 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.5 A @ 50 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
UVZ2F101MHDCAP ALUM 100UF 20% 315V RADIAL Nichicon |
119 | - |
RFQ |
데이터시트 |
Bulk | UVZ | Not For New Designs | 100 µF | ±20% | 315 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 395 mA @ 120 Hz | 632 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UVR1A153MHDCAP ALUM 15000UF 20% 10V RADIAL Nichicon |
2,624 | - |
RFQ |
데이터시트 |
Bulk | UVR | Not For New Designs | 15000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 3.565 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.398 (35.50mm) | - | Through Hole |
|

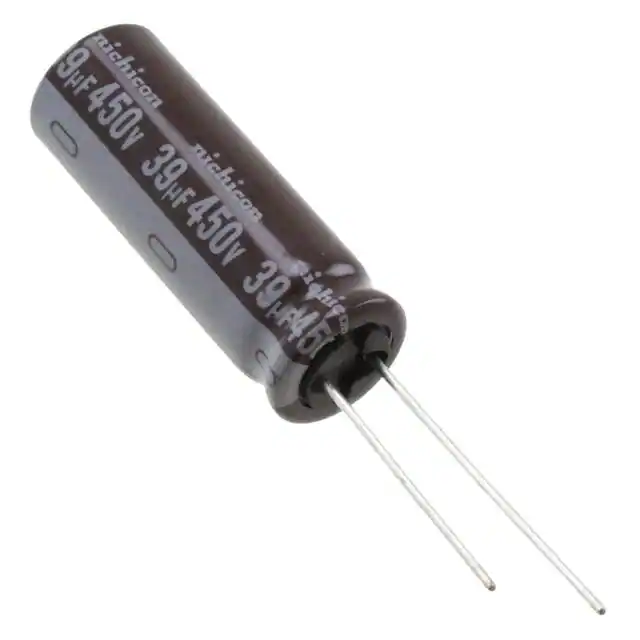

UCY2W390MHDCAP ALUM 39UF 20% 450V RADIAL Nichicon |
2,491 | - |
RFQ |
데이터시트 |
Bulk | UCY | Active | 39 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | 920 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
.JPG)
|
LQR2G392MSEGCAP ALUM 3900UF 20% 400V SCREW Nichicon |
3,799 | - |
RFQ |
데이터시트 |
Bulk | LQR | Active | 3900 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16 A @ 120 Hz | 22.4 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
LNU2G562MSEHCAP ALUM 5600UF 20% 400V SCREW Nichicon |
2,308 | - |
RFQ |
데이터시트 |
Bulk | LNU | Active | 5600 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.1 A @ 120 Hz | 23.94 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.252 (108.00mm) | - | Chassis Mount |
|

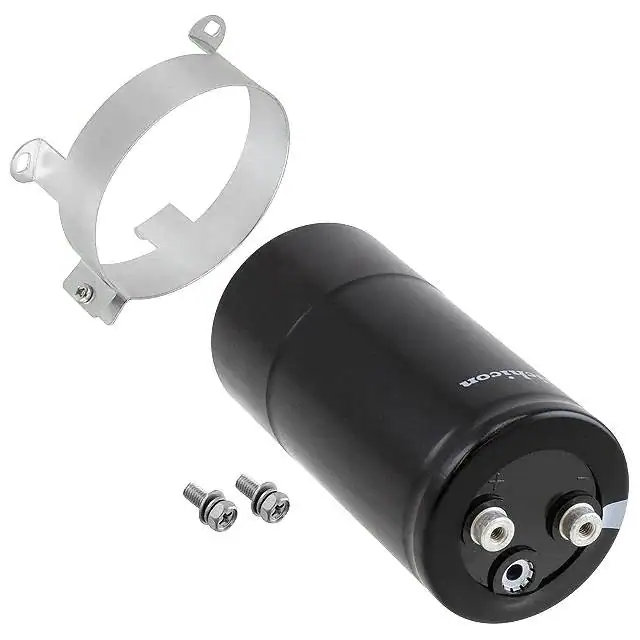

LNT2G332MSEGCAP ALUM 3300UF 20% 400V SCREW Nichicon |
3,393 | - |
RFQ |
데이터시트 |
Bulk | LNT | Active | 3300 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 15.4 A @ 120 Hz | 21.56 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 5.197 (132.00mm) | - | Chassis Mount |
|

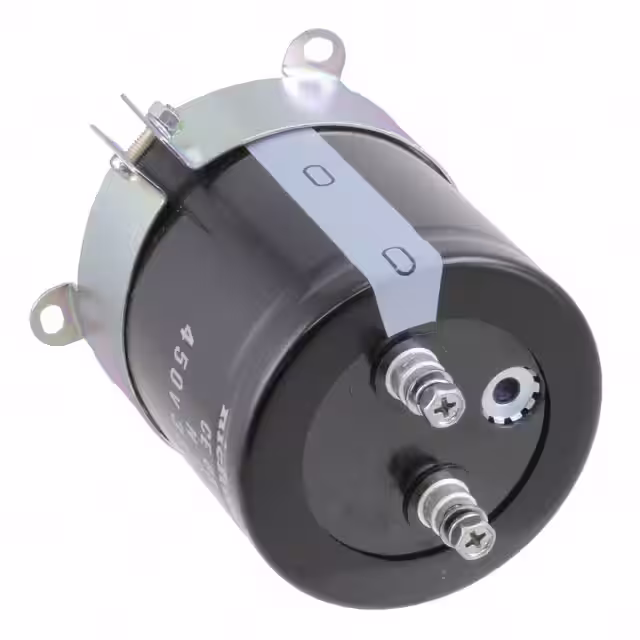

LNC2W332MSEHCAP ALUM 3300UF 20% 450V SCREW Nichicon |
3,509 | - |
RFQ |
데이터시트 |
Bulk | LNC | Active | 3300 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.5 A @ 120 Hz | 21.7 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 3.465 (88.00mm) | - | Chassis Mount |
|
LNX2J102MSEGCAP ALUM 1000UF 20% 630V SCREW Nichicon |
2,087 | - |
RFQ |
데이터시트 |
Bulk | LNX | Active | 1000 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.9 A @ 120 Hz | - | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
UPZ2W470MHDCAP ALUM 47UF 20% 450V RADIAL Nichicon |
395 | - |
RFQ |
데이터시트 |
Bulk | UPZ | Active | 47 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 380 mA @ 120 Hz | 570 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.654 (42.00mm) | - | Through Hole |
