LED 조명 - COB, 엔진, 모듈, 스트립

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
CST-90-W57S-C12-GN201 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	2,463	-	RFQ	데이터시트	Tray	CST-90	Obsolete	LED Module	White, Cool	5700K	-	Square	925lm (850lm ~ 1000lm)	3.15A	25°C	3.25V	90 lm/W	13.5A	70 (Typ)	-	With Connector	42.00mm L x 28.00mm W	7.90mm	8.00mm Dia
SSR-90-G-R11-JG200 BIG CHIP LED HB MODULE GREEN Luminus Devices Inc.	3,800	-	RFQ	데이터시트	Tray	SSR-90	Obsolete	LED Module	Green	-	537nm	Starboard	-	3.15A	-	3.4V	-	27A	-	100°	-	19.90mm L x 19.90mm W	7.10mm	8.00mm Dia
SSR-90-R-R11-HH100 BIG CHIP LED HB MODULE RED Luminus Devices Inc.	3,609	-	RFQ	데이터시트	Tray	SSR-90	Obsolete	LED Module	Red	-	624nm	Starboard	-	3.15A	-	2V	-	27A	-	100°	-	19.90mm L x 19.90mm W	7.10mm	8.00mm Dia

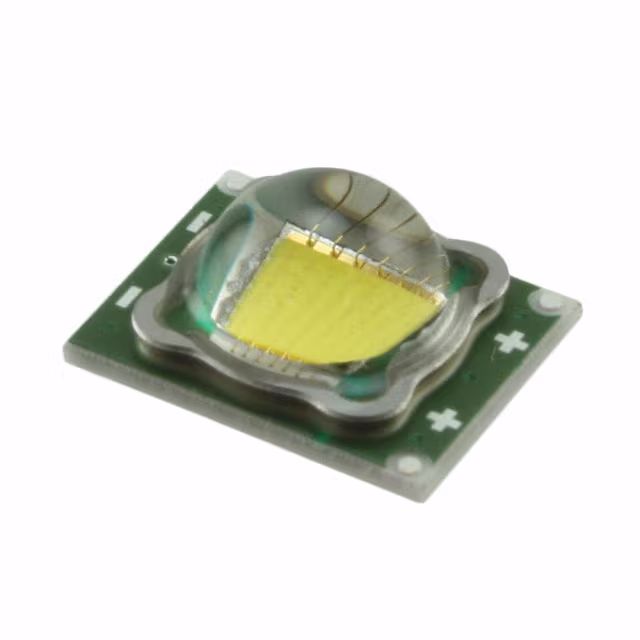

SST-50-W45S-F21-J3400 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	2,646	-	RFQ	데이터시트	Tray	SST-50	Obsolete	Chip On Board (COB)	White, Neutral	4500K	-	Square	488lm (475lm ~ 500lm)	1.75A	25°C	3.2V	87 lm/W	5A	70	100°	-	7.30mm L x 9.00mm W	4.30mm	5.60mm Dia
CST-90-W65S-C12-GM102 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	2,405	-	RFQ	데이터시트	Tray	CST-90	Obsolete	LED Module	White, Cool	6500K	-	Rectangle	-	3.15A	40°C	3.25V	-	13.5A	70 (Typ)	95°	With Connector	28.00mm L x 42.00mm W	5.61mm	3.00mm L x 3.00mm W
CSM-360-W65S-D22-GV100 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	2,087	-	RFQ	데이터시트	Tray	CSM-360	Obsolete	LED Module	White, Cool	6500K	-	Rectangle	3300lm (3000lm ~ 3600lm)	3.15A	40°C	13.14V	80 lm/W	6.3A	70 (Typ)	115°	-	36.00mm L x 51.00mm W	5.61mm	16.00mm Dia

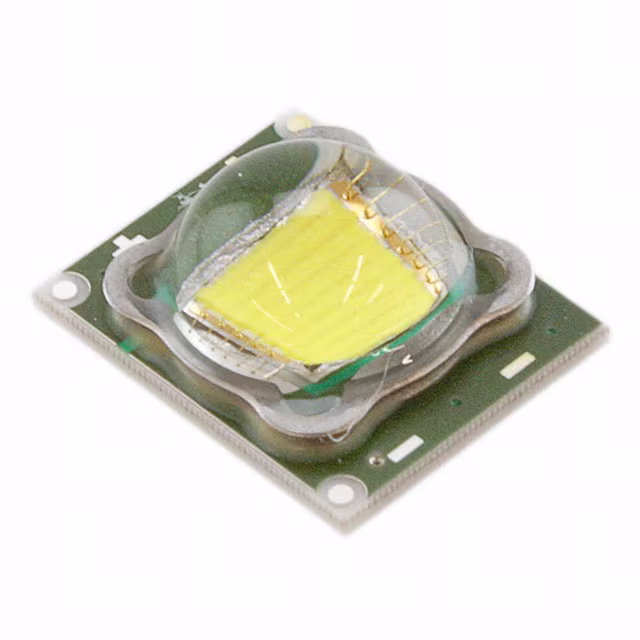

SST-50-W65S-F21-GK100 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	3,219	-	RFQ	데이터시트	Tray	SST-50	Obsolete	Chip On Board (COB)	White, Cool	6500K	-	Square	-	1.75A	-	3.2V	-	5A	70	100°	-	7.30mm L x 9.00mm W	4.30mm	5.60mm Dia
CSM-360-W65S-D22-GV102 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	3,832	-	RFQ	데이터시트	Tray	CSM-360	Obsolete	LED Module	White, Cool	6500K	-	Rectangle	3300lm (3000lm ~ 3600lm)	3.15A	40°C	13.14V	80 lm/W	6.3A	70 (Typ)	115°	With Connector	36.00mm L x 51.00mm W	5.61mm	16.00mm Dia
CST-90-W65S-C12-GN102 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	3,505	-	RFQ	데이터시트	Tray	CST-90	Obsolete	LED Module	White, Cool	6500K	-	Rectangle	925lm (850lm ~ 1000lm)	3.15A	40°C	3.25V	90 lm/W	13.5A	70 (Typ)	95°	With Connector	28.00mm L x 42.00mm W	5.61mm	3.00mm L x 3.00mm W
SST-50-W65S-F21-GK102 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	2,027	-	RFQ	데이터시트	Tray	SST-50	Obsolete	Chip On Board (COB)	White, Cool	6500K	-	Square	-	1.75A	-	3.2V	-	5A	70	100°	-	7.30mm L x 9.00mm W	4.30mm	5.60mm Dia
CST-90-W65S-C13-GN100 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	3,623	-	RFQ	데이터시트	Tray	CST-90	Obsolete	LED Module	White, Cool	6500K	-	Square	925lm (850lm ~ 1000lm)	3.15A	25°C	3.25V	90 lm/W	13.5A	70 (Typ)	-	With Connector	42.00mm L x 28.00mm W	7.90mm	8.00mm Dia
SST-90-B-F11-KG300 BIG CHIP LED HB MODULE BLUE Luminus Devices Inc.	2,031	-	RFQ	데이터시트	Tray	SST-90	Obsolete	Chip On Board (COB)	Blue	-	465nm	Square	180lm (Typ)	3.15A	25°C	3.4V	17 lm/W	27A	70	100°	-	11.00mm L x 10.00mm W	5.40mm	8.00mm Dia
CST-90-W65S-C13-GN102 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	3,288	-	RFQ	데이터시트	Tray	CST-90	Obsolete	LED Module	White, Cool	6500K	-	Square	925lm (850lm ~ 1000lm)	3.15A	25°C	3.25V	90 lm/W	13.5A	70 (Typ)	-	With Connector	42.00mm L x 28.00mm W	7.90mm	8.00mm Dia
SST-90-G-F11-JG200 BIG CHIP LED HB MODULE GREEN Luminus Devices Inc.	2,348	-	RFQ	데이터시트	Tray	SST-90	Obsolete	Chip On Board (COB)	Green	-	537nm	Square	855lm (Typ)	3.15A	25°C	3.4V	80 lm/W	27A	70	100°	-	11.00mm L x 10.00mm W	5.40mm	8.00mm Dia
SBR-160-RGBW-R41-RD100 BIG CHIP LED HB MODULE RGB, WHT Luminus Devices Inc.	3,873	-	RFQ	데이터시트	Tray	SBR-160	Obsolete	LED Module	Red, Green, Blue, White - Cool (RGBW)	6500K	623nm Red, 530nm Green, 458nm Blue	Square	-	4A Red, 4A Green, 4A Blue, 4A White	25°C	3V Red, 4.6V Green, 3.8V Blue, 3.8V White	-	4A Red, 4A Green, 4A Blue, 4A White	-	-	With Connector	36.00mm L x 36.00mm W	8.72mm	-
SBR-90-W65S-R71-MA100 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	2,322	-	RFQ	데이터시트	Tray	SBR-90	Obsolete	LED Module	White, Cool	6500K	-	Starboard	-	-	40°C	3.5V	-	9A	-	-	-	19.90mm Dia	3.50mm	3.00mm L x 3.00mm W
SBR-90-W65S-R71-MB100 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	3,993	-	RFQ	데이터시트	Tray	SBR-90	Obsolete	LED Module	White, Cool	6500K	-	Starboard	-	-	40°C	3.5V	-	9A	-	-	-	19.90mm Dia	3.50mm	3.00mm L x 3.00mm W
SBR-90-W65S-R71-MB102 BIG CHIP LED HB MODULE WHITE Luminus Devices Inc.	2,996	-	RFQ	데이터시트	Tray	SBR-90	Obsolete	LED Module	White, Cool	6500K	-	Starboard	-	-	40°C	3.5V	-	9A	-	-	-	19.90mm Dia	3.50mm	3.00mm L x 3.00mm W
SST-90-G-F11-JG201 BIG CHIP LED HB MODULE GREEN Luminus Devices Inc.	3,002	-	RFQ	데이터시트	Tray	SST-90	Obsolete	Chip On Board (COB)	Green	-	537nm	Square	855lm (Typ)	3.15A	25°C	3.4V	80 lm/W	27A	70	100°	-	11.00mm L x 10.00mm W	5.40mm	8.00mm Dia
CBT-120-R-C11-HM101 BIG CHIP LED HB MODULE RED Luminus Devices Inc.	2,024	-	RFQ	데이터시트	Tray	CBT-120	Discontinued at Mosen	LED Module	Red	-	621nm (619nm ~ 623nm)	Square	-	18A	-	2.3V	-	36A	-	-	With Connector	28.00mm L x 42.00mm W	5.61mm	2.60mm L x 4.63mm W
