더 많은 제품 카테고리

LED 조명 - COB, 엔진, 모듈, 스트립

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
CXA2520-0000-000N0UN430G LED COB CXA2520 3000K WHITE SMD CreeLED, Inc.	2,032	-	RFQ	데이터시트	Tray	XLamp® CXA2520	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	1770lm (1710lm ~ 1830lm)	550mA	85°C	36V	89 lm/W	1.25A	90	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA1512-0000-000N0YG427F LED ARRAY XLAMP CXA1512 WHITE CreeLED, Inc.	3,923	-	RFQ	데이터시트	Tray	XLamp® CXA1512	Active	Chip On Board (COB)	White, Warm	2700K 4-Step MacAdam Ellipse	-	Square	870lm (840lm ~ 900lm)	350mA	85°C	37V	67 lm/W	600mA	93	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1512-0000-000N0YH20E8 LED ARRAY XLAMP CXA1512 WHITE CreeLED, Inc.	2,917	-	RFQ	데이터시트	Tray	XLamp® CXA1512	Active	Chip On Board (COB)	White, Warm	2700K	-	Square	935lm (900lm ~ 970lm)	350mA	85°C	37V	72 lm/W	600mA	93	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1512-0000-000N0YH230F LED ARRAY XLAMP CXA1512 WHITE CreeLED, Inc.	2,814	-	RFQ	데이터시트	Tray	XLamp® CXA1512	Active	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	935lm (900lm ~ 970lm)	350mA	85°C	37V	72 lm/W	600mA	93	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1512-0000-000N0YH40E7 LED ARRAY XLAMP CXA1512 WHITE CreeLED, Inc.	3,318	-	RFQ	데이터시트	Tray	XLamp® CXA1512	Active	Chip On Board (COB)	White, Warm	3000K	-	Square	1010lm (970lm ~ 1040lm)	350mA	85°C	37V	80 lm/W	600mA	93	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1512-0000-000F0YG427F LED COB CXA1512 WARM WHT SQUARE CreeLED, Inc.	2,151	-	RFQ	데이터시트	Tray	XLamp® CXA1512	Active	Chip On Board (COB)	White, Warm	2700K 4-Step MacAdam Ellipse	-	Square	870lm (840lm ~ 900lm)	700mA	85°C	18V	69 lm/W	1.2A	93	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1512-0000-000F0YH20E8 LED COB CXA1512 WARM WHT SQUARE CreeLED, Inc.	2,799	-	RFQ	데이터시트	Tray	XLamp® CXA1512	Active	Chip On Board (COB)	White, Warm	2700K	-	Square	935lm (900lm ~ 970lm)	700mA	85°C	18V	74 lm/W	1.2A	93	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1512-0000-000F0YH230F LED COB CXA1512 WARM WHT SQUARE CreeLED, Inc.	3,542	-	RFQ	데이터시트	Tray	XLamp® CXA1512	Active	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	935lm (900lm ~ 970lm)	700mA	85°C	18V	74 lm/W	1.2A	93	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1512-0000-000F0YH40E7 LED COB CXA1512 WARM WHT SQUARE CreeLED, Inc.	3,314	-	RFQ	데이터시트	Tray	XLamp® CXA1512	Active	Chip On Board (COB)	White, Warm	3000K	-	Square	1010lm (970lm ~ 1040lm)	700mA	85°C	18V	80 lm/W	1.2A	93	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXA1820-0000-000N00R40E5 LED COB CXA1820 NEUTRAL WHITE SQ CreeLED, Inc.	3,945	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Neutral	4000K	-	Square	2690lm (2600lm ~ 2780lm)	550mA	85°C	37V	132 lm/W	1.05A	70	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
CXA1820-0000-000N0HR20E5 LED COB CXA1820 NEUTRAL WHITE SQ CreeLED, Inc.	3,780	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Neutral	4000K	-	Square	2510lm (2420lm ~ 2600lm)	550mA	85°C	37V	123 lm/W	1.05A	80	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia

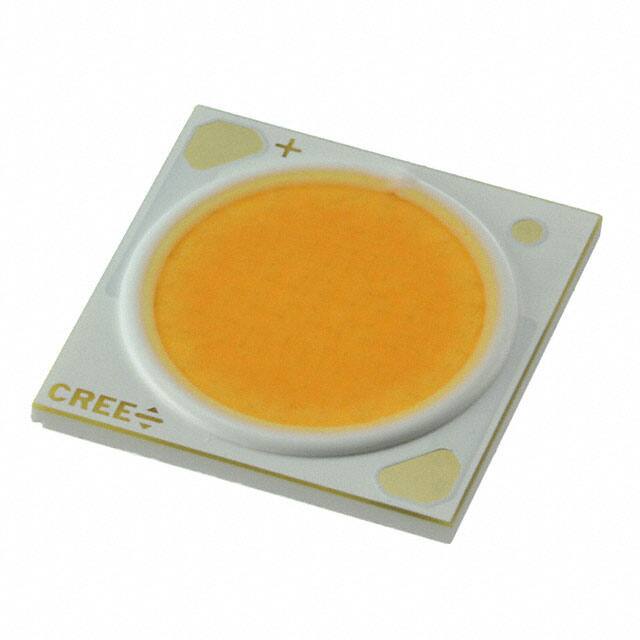

CXA1820-0000-000N00Q227G LED COB CXA1820 2700K WHITE SMD CreeLED, Inc.	3,068	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	2180lm (2100lm ~ 2260lm)	550mA	85°C	36V	110 lm/W	1.05A	80	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
CXA1820-0000-000N00Q430G LED COB CXA1820 3000K WHITE SMD CreeLED, Inc.	4,000	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	2340lm (2260lm ~ 2420lm)	550mA	85°C	36V	118 lm/W	1.05A	80	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
CXA1820-0000-000N00Q435G LED COB CXA1820 3500K WHITE SMD CreeLED, Inc.	2,795	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	2340lm (2260lm ~ 2420lm)	550mA	85°C	36V	118 lm/W	1.05A	80	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
CXA1820-0000-000N0HQ440G LED COB CXA1820 4000K WHITE SMD CreeLED, Inc.	3,975	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	2340lm (2260lm ~ 2420lm)	550mA	85°C	36V	118 lm/W	1.05A	80	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
CXA1820-0000-000N0HR250G LED COB CXA1820 5000K WHITE SMD CreeLED, Inc.	3,488	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Square	2510lm (2420lm ~ 2600lm)	550mA	85°C	36V	127 lm/W	1.05A	80	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
CXA1820-0000-000N0UP240G LED COB CXA1820 4000K WHITE SMD CreeLED, Inc.	3,518	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	1898lm (1830lm ~ 1965lm)	550mA	85°C	36V	96 lm/W	1.05A	90	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
CXA1820-0000-000N0UP450G LED COB CXA1820 5000K WHITE SMD CreeLED, Inc.	3,123	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Square	2033lm (1965lm ~ 2100lm)	550mA	85°C	36V	103 lm/W	1.05A	90	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
CXA1820-0000-000N0YM427G LED COB CXA1820 2700K WHITE SMD CreeLED, Inc.	3,063	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	1538lm (1485lm ~ 1590lm)	550mA	85°C	36V	78 lm/W	1.05A	93	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
CXA1820-0000-000N0YN230G LED COB CXA1820 3000K WHITE SMD CreeLED, Inc.	3,944	-	RFQ	데이터시트	Tray	XLamp® CXA1820	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	1650lm (1590lm ~ 1710lm)	550mA	85°C	36V	83 lm/W	1.05A	93	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
