LED 조명 - COB, 엔진, 모듈, 스트립

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
CXA2540-0000-000N0UU450H LED ARRAY XLAMP CXA2540 19MM WHT CreeLED, Inc.	2,473	-	RFQ	데이터시트	Tray	XLamp® CXA2540	Active	Chip On Board (COB)	White, Cool	5000K 2-Step MacAdam Ellipse	-	Square	4093lm (3955lm ~ 4230lm)	1.1A	85°C	37V	101 lm/W	2.1A	90	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2540-0000-000N00W440F LED COB CXA2540 NEUTRAL WHITE SQ CreeLED, Inc.	3,134	-	RFQ	데이터시트	Tray	XLamp® CXA2540	Active	Chip On Board (COB)	White, Neutral	4000K 4-Step MacAdam Ellipse	-	Square	5408lm (5225lm ~ 5590lm)	1.1A	85°C	37V	133 lm/W	2.1A	70	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2540-0000-000N00X257F LED COB CXA2540 COOL WHT SQUARE CreeLED, Inc.	2,248	-	RFQ	데이터시트	Tray	XLamp® CXA2540	Active	Chip On Board (COB)	White, Cool	5700K 4-Step MacAdam Ellipse	-	Square	5800lm (5590lm ~ 6010lm)	1.1A	85°C	37V	143 lm/W	2.1A	70	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2540-0000-000N00X265F LED COB CXA2540 COOL WHT SQUARE CreeLED, Inc.	3,840	-	RFQ	데이터시트	Tray	XLamp® CXA2540	Active	Chip On Board (COB)	White, Cool	6500K 4-Step MacAdam Ellipse	-	Square	5800lm (5590lm ~ 6010lm)	1.1A	85°C	37V	143 lm/W	2.1A	70	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2540-0000-000N0HW240F LED COB CXA2540 NEUTRAL WHITE SQ CreeLED, Inc.	2,454	-	RFQ	데이터시트	Tray	XLamp® CXA2540	Active	Chip On Board (COB)	White, Neutral	4000K 4-Step MacAdam Ellipse	-	Square	5043lm (4860lm ~ 5225lm)	1.1A	85°C	37V	124 lm/W	2.1A	80	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2540-0000-000N0HW450F LED COB CXA2540 COOL WHT SQUARE CreeLED, Inc.	2,753	-	RFQ	데이터시트	Tray	XLamp® CXA2540	Active	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Square	5408lm (5225lm ~ 5590lm)	1.1A	85°C	37V	133 lm/W	2.1A	80	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2540-0000-000N0HW457F LED COB CXA2540 COOL WHT SQUARE CreeLED, Inc.	2,401	-	RFQ	데이터시트	Tray	XLamp® CXA2540	Active	Chip On Board (COB)	White, Cool	5700K 4-Step MacAdam Ellipse	-	Square	5408lm (5225lm ~ 5590lm)	1.1A	85°C	37V	133 lm/W	2.1A	80	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2540-0000-000N0HW465F LED COB CXA2540 COOL WHT SQUARE CreeLED, Inc.	3,745	-	RFQ	데이터시트	Tray	XLamp® CXA2540	Active	Chip On Board (COB)	White, Cool	6500K 4-Step MacAdam Ellipse	-	Square	5408lm (5225lm ~ 5590lm)	1.1A	85°C	37V	133 lm/W	2.1A	80	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXB1830-0000-000N0UT231Q LED COB CXB1830 WARM WHT SQUARE CreeLED, Inc.	3,524	-	RFQ	데이터시트	Tray	Xlamp® CXB1830	Active	Chip On Board (COB)	White, Warm	3100K 3-Step MacAdam Ellipse	-	Square	3320lm (3200lm ~ 3440lm)	800mA	85°C	35V	119 lm/W	1.4A	90	115°	-	17.85mm L x 17.85mm W	1.70mm	14.00mm Dia

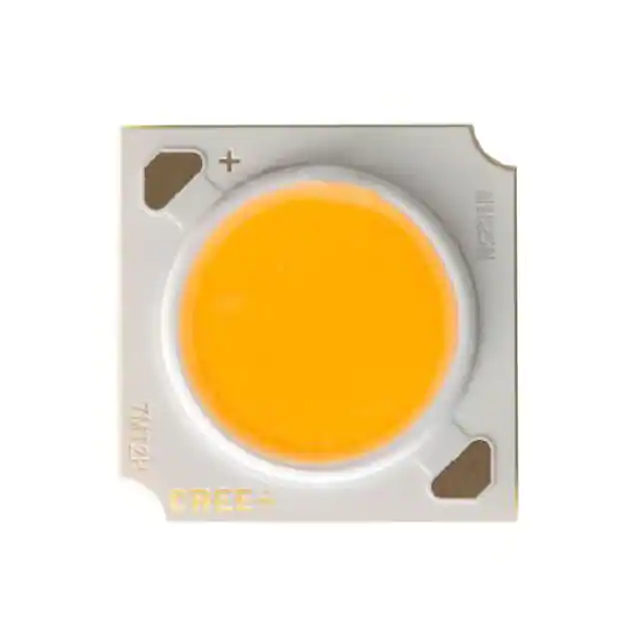

CMA1825-0000-000N0Z0A40H XLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc.	3,356	-	RFQ	데이터시트	Tray	XLamp® CMA1825	Active	Chip On Board (COB)	-	-	-	Square	-	700mA	85°C	34.6V	-	1.6A	-	115°	-	17.85mm L x 17.85mm W	1.70mm	12.00mm Dia
CXA2530-0000-000N00S427F LED XLAMP CXA2530 WHT 19MM CreeLED, Inc.	3,623	-	RFQ	데이터시트	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Warm	2700K 4-Step MacAdam Ellipse	-	Square	3060lm (2990lm ~ 3220lm)	800mA	85°C	37V	103 lm/W	1.6A	80	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2530-0000-000N00T235F LED XLAMP CXA2530 WHT 19MM CreeLED, Inc.	2,048	-	RFQ	데이터시트	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Warm	3500K 4-Step MacAdam Ellipse	-	Square	3320lm (3200lm ~ 3440lm)	800mA	85°C	37V	112 lm/W	1.6A	80	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2530-0000-000N0UR240F LED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc.	3,369	-	RFQ	데이터시트	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Neutral	4000K 4-Step MacAdam Ellipse	-	Square	2510lm (2420lm ~ 2600lm)	800mA	85°C	37V	85 lm/W	1.6A	93	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2530-0000-000N0UR40E5 LED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc.	2,703	-	RFQ	데이터시트	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Neutral	4000K	-	Square	2690lm (2600lm ~ 2780lm)	800mA	85°C	37V	91 lm/W	1.6A	93	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2530-0000-000N0UR450F LED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc.	3,408	-	RFQ	데이터시트	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Square	2690lm (2600lm ~ 2780lm)	800mA	85°C	37V	91 lm/W	1.6A	90	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2530-0000-000N0YP427F LED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc.	2,929	-	RFQ	데이터시트	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Warm	2700K 4-Step MacAdam Ellipse	-	Square	2033lm (1965lm ~ 2100lm)	800mA	85°C	37V	69 lm/W	1.6A	93	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2530-0000-000N0YQ20E8 LED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc.	2,420	-	RFQ	데이터시트	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Warm	2700K	-	Square	2180lm (2100lm ~ 2260lm)	800mA	85°C	37V	74 lm/W	1.6A	93	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2530-0000-000N0YQ230F LED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc.	3,315	-	RFQ	데이터시트	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	2180lm (2100lm ~ 2260lm)	800mA	85°C	37V	74 lm/W	1.6A	93	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2530-0000-000N0YQ40E7 LED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc.	3,314	-	RFQ	데이터시트	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Warm	3000K	-	Square	2340lm (2260lm ~ 2780lm)	800mA	85°C	37V	79 lm/W	1.6A	93	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2530-0000-000N0YQ435F LED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc.	2,627	-	RFQ	데이터시트	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Warm	3500K 4-Step MacAdam Ellipse	-	Square	2340lm (2260lm ~ 2780lm)	800mA	85°C	37V	79 lm/W	1.6A	93	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
