더 많은 제품 카테고리

LED 조명 - COB, 엔진, 모듈, 스트립

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)

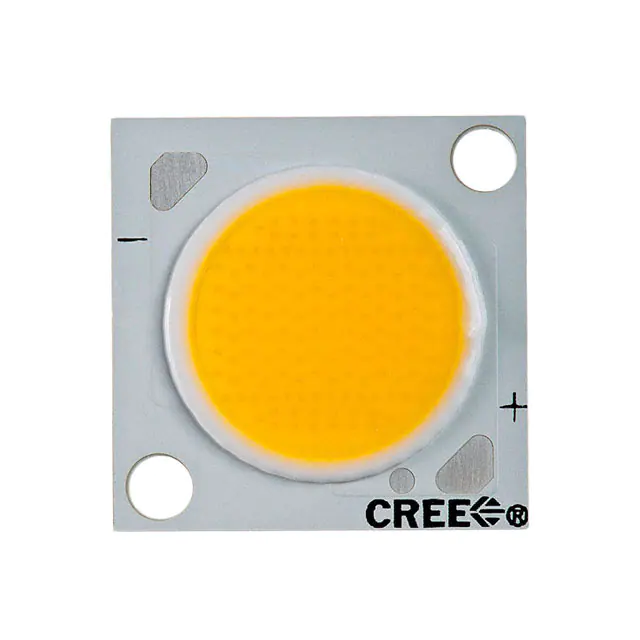

CXA2011-0000-000P00H035H LED WARM WHITE 3500K SCREW MOUNT CreeLED, Inc.	2,033	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3500K 2-Step MacAdam Ellipse	-	Square	970lm (900lm ~ 1040lm)	270mA	85°C	40V	90 lm/W	1A	77	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00G027F LED WARM WHITE 2700K SCREW MOUNT CreeLED, Inc.	3,751	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	2700K 4-Step MacAdam Ellipse	-	Square	840lm (780lm ~ 900lm)	270mA	85°C	40V	78 lm/W	1A	80	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00G030F LED WARM WHITE 3000K SCREW MOUNT CreeLED, Inc.	2,658	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	840lm (780lm ~ 900lm)	270mA	85°C	40V	78 lm/W	1A	80	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00G030H LED WARM WHITE 3000K SCREW MOUNT CreeLED, Inc.	2,036	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Square	840lm (780lm ~ 900lm)	270mA	85°C	40V	78 lm/W	1A	80	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00H030H LED WARM WHITE 3000K SCREW MOUNT CreeLED, Inc.	2,207	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Square	970lm (900lm ~ 1040lm)	270mA	85°C	40V	90 lm/W	1A	80	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00J050F LED COOL WHITE 5000K SCREW MOUNT CreeLED, Inc.	2,924	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Square	1120lm (1040lm ~ 1200lm)	270mA	85°C	40V	104 lm/W	1A	70	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00J00E3 LED COOL WHITE 5000K SCREW MOUNT CreeLED, Inc.	2,002	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Cool	5000K	-	Square	1120lm (1040lm ~ 1200lm)	270mA	85°C	40V	104 lm/W	1A	70	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00G035H LED WARM WHITE 3500K SCREW MOUNT CreeLED, Inc.	3,238	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3500K 2-Step MacAdam Ellipse	-	Square	840lm (780lm ~ 900lm)	270mA	85°C	40V	78 lm/W	1A	77	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00G027H LED WARM WHITE 2700K SCREW MOUNT CreeLED, Inc.	2,183	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Square	840lm (780lm ~ 900lm)	270mA	85°C	40V	78 lm/W	1A	80	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00H030F LED WARM WHITE 3000K SCREW MOUNT CreeLED, Inc.	3,201	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	970lm (900lm ~ 1040lm)	270mA	85°C	40V	90 lm/W	1A	80	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00G00E6 LED WARM WHITE 3500K SCREW MOUNT CreeLED, Inc.	3,455	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3500K	-	Square	840lm (780lm ~ 900lm)	270mA	85°C	40V	78 lm/W	1A	77	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00H00E5 LED NTRL WHITE 4000K SCREW MOUNT CreeLED, Inc.	3,672	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Neutral	4000K	-	Square	970lm (900lm ~ 1040lm)	270mA	85°C	40V	90 lm/W	1A	70	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00H040H LED NTRL WHITE 4000K SCREW MOUNT CreeLED, Inc.	3,996	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Square	970lm (900lm ~ 1040lm)	270mA	85°C	40V	90 lm/W	1A	70	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00H050H LED COOL WHITE 5000K SCREW MOUNT CreeLED, Inc.	2,965	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Cool	5000K 2-Step MacAdam Ellipse	-	Square	970lm (900lm ~ 1040lm)	270mA	85°C	40V	90 lm/W	1A	70	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00H00E6 LED WARM WHITE 3500K SCREW MOUNT CreeLED, Inc.	2,835	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Warm	3500K	-	Square	970lm (900lm ~ 1040lm)	270mA	85°C	40V	90 lm/W	1A	77	120°	-	22.00mm L x 22.00mm W	2.28mm	-
CXA2011-0000-000P00H00E3 LED COOL WHITE 5000K SCREW MOUNT CreeLED, Inc.	3,281	-	RFQ	데이터시트	Tube	XLamp® CXA2011	Obsolete	Chip On Board (COB)	White, Cool	5000K	-	Square	970lm (900lm ~ 1040lm)	270mA	85°C	40V	90 lm/W	1A	70	120°	-	22.00mm L x 22.00mm W	2.28mm	-

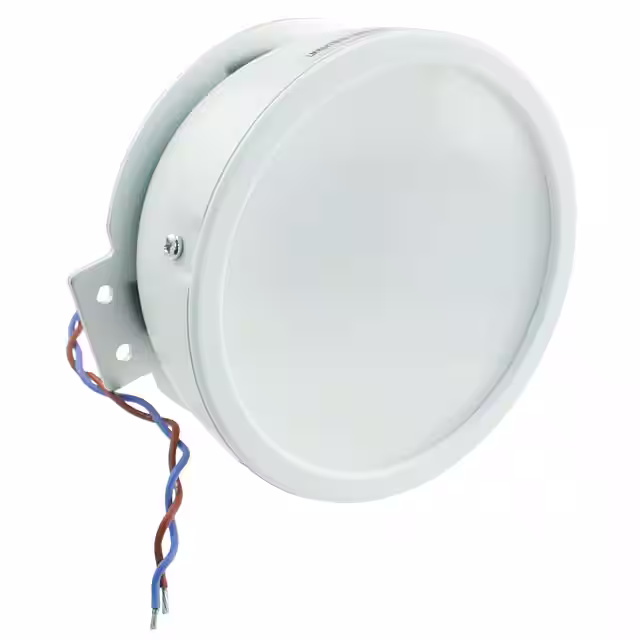

LMR040-1000-27F9-20100TW LED MOD LMR4 WRM WHT 1000LM 230V CreeLED, Inc.	2,503	-	RFQ	데이터시트	Box	LMR4, TrueWhite®	Obsolete	LED Engine	White, Warm	2700K	-	Round, Plug and Play	-	-	-	-	-	-	90	-	Dimming - TRIAC	103.40mm Dia	79.45mm	-
LMR040-1000-30F9-20100TW LED MOD LMR4 WRM WHT 1000LM 230V CreeLED, Inc.	3,536	-	RFQ	데이터시트	Box	LMR4, TrueWhite®	Obsolete	LED Engine	White, Warm	3000K	-	Round, Plug and Play	-	-	-	-	-	-	90	-	Dimming - TRIAC	103.40mm Dia	79.45mm	-
LMR040-1000-35F9-20100TW LED MOD LMR4 WRM WHT 1000LM 230V CreeLED, Inc.	2,170	-	RFQ	데이터시트	Box	LMR4, TrueWhite®	Obsolete	LED Engine	White, Warm	3500K	-	Round, Plug and Play	-	-	-	-	-	-	90	-	Dimming - TRIAC	103.40mm Dia	79.45mm	-
LMR040-1000-40F9-20100TW LED MOD LMR4 WRM WHT 1000LM 230V CreeLED, Inc.	2,240	-	RFQ	데이터시트	Box	LMR4, TrueWhite®	Obsolete	LED Engine	White, Neutral	4000K	-	Round, Plug and Play	-	-	-	-	-	-	90	-	Dimming - TRIAC	103.40mm Dia	79.45mm	-
