LED 조명 - COB, 엔진, 모듈, 스트립
| 사진: | 제조업체 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

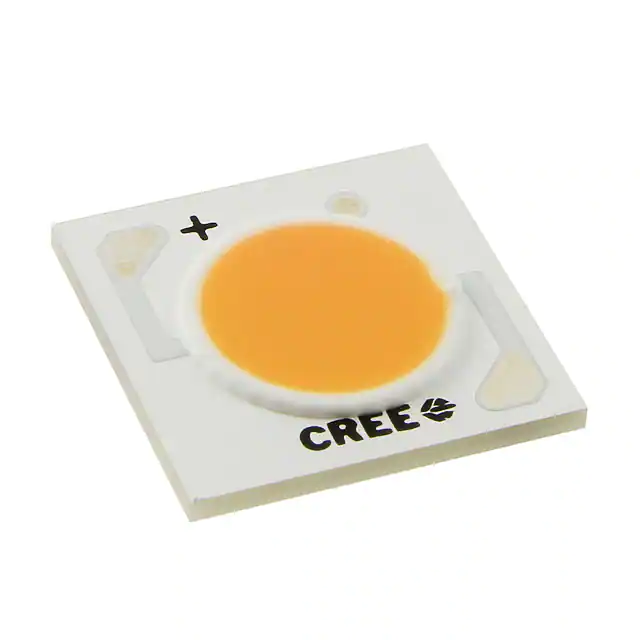

CXA1520-0000-000N00P235GLED COB CXA1520 3500K WHITE SMD CreeLED, Inc. |
2,746 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 500mA | 85°C | 36V | 105 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0HN440GLED COB CXA1520 4000K WHITE SMD CreeLED, Inc. |
3,610 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 500mA | 85°C | 36V | 98 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0HN450GLED COB CXA1520 5000K WHITE SMD CreeLED, Inc. |
3,811 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 500mA | 85°C | 36V | 98 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0HP240GLED COB CXA1520 4000K WHITE SMD CreeLED, Inc. |
2,227 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 500mA | 85°C | 36V | 105 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0HP250GLED COB CXA1520 5000K WHITE SMD CreeLED, Inc. |
3,703 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 500mA | 85°C | 36V | 105 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0HP450GLED COB CXA1520 5000K WHITE SMD CreeLED, Inc. |
3,832 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 500mA | 85°C | 36V | 113 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0UM240GLED COB CXA1520 4000K WHITE SMD CreeLED, Inc. |
2,052 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 500mA | 85°C | 36V | 80 lm/W | 900mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0UM440GLED COB CXA1520 4000K WHITE SMD CreeLED, Inc. |
2,763 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 500mA | 85°C | 36V | 85 lm/W | 900mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0UM450GLED COB CXA1520 5000K WHITE SMD CreeLED, Inc. |
3,659 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 500mA | 85°C | 36V | 85 lm/W | 900mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0UN250GLED COB CXA1520 5000K WHITE SMD CreeLED, Inc. |
2,005 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 500mA | 85°C | 36V | 92 lm/W | 900mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0YJ427GLED COB CXA1520 2700K WHITE SMD CreeLED, Inc. |
3,049 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 500mA | 85°C | 36V | 64 lm/W | 900mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0YK227GLED COB CXA1520 2700K WHITE SMD CreeLED, Inc. |
3,231 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 500mA | 85°C | 36V | 69 lm/W | 900mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0YK230GLED COB CXA1520 3000K WHITE SMD CreeLED, Inc. |
3,005 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 500mA | 85°C | 36V | 69 lm/W | 900mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0YK430GLED COB CXA1520 3000K WHITE SMD CreeLED, Inc. |
3,335 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 500mA | 85°C | 36V | 74 lm/W | 900mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0YK435GLED COB CXA1520 3500K WHITE SMD CreeLED, Inc. |
3,658 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 500mA | 85°C | 36V | 74 lm/W | 900mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0YM230GLED COB CXA1520 3000K WHITE SMD CreeLED, Inc. |
2,284 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 500mA | 85°C | 36V | 80 lm/W | 900mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
|
CXA1520-0000-000N0YM235GLED COB CXA1520 3500K WHITE SMD CreeLED, Inc. |
2,446 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1520 | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 500mA | 85°C | 36V | 80 lm/W | 900mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia |
|
CXA1850-0000-000N00U427GLED COB CXA1850 2700K WHITE SMD CreeLED, Inc. |
3,378 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1850 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 1.4A | 85°C | 36V | 81 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia |
|
|
CXA1850-0000-000N00V227GLED COB CXA1850 2700K WHITE SMD CreeLED, Inc. |
3,553 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1850 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4388lm (4230lm ~ 4545lm) | 1.4A | 85°C | 36V | 87 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia |
|
|
CXA1850-0000-000N00V230GLED COB CXA1850 3000K WHITE SMD CreeLED, Inc. |
3,630 | - |
RFQ |
데이터시트 |
Tray | XLamp® CXA1850 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4388lm (4230lm ~ 4545lm) | 1.4A | 85°C | 36V | 87 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia |
