LED 조명 - COB, 엔진, 모듈, 스트립
| 사진: | 제조업체 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B8V07228LWWLED SLIM 3000K 1080LM BACK WIRE Samsung Semiconductor, Inc. |
128 | - |
RFQ |
Tray | LT-S282L | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1080lm (Typ) | 200mA | 50°C | 35.2V | 153 lm/W | 360mA | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 7.40mm | - | |
|
SI-B8V14156HWWLED SLIM 3000K 2180LM FRONT WIRE Samsung Semiconductor, Inc. |
191 | - |
RFQ |
데이터시트 |
Tray | LT-S562H | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 300mA | 50°C | 46.9V | 155 lm/W | 540mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - |
|
|
SI-B8R14156HWWLED SLIM 5000K 2290LM FRONT WIRE Samsung Semiconductor, Inc. |
168 | - |
RFQ |
데이터시트 |
Tray | LT-S562H | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2290lm (Typ) | 300mA | 50°C | 46.9V | 163 lm/W | 540mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - |
|
SI-B8R14256HWWLED SLIM 5000K 2290LM BACK WIRE Samsung Semiconductor, Inc. |
126 | - |
RFQ |
데이터시트 |
Tray | LT-S562H | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2290lm (Typ) | 300mA | 50°C | 46.9V | 163 lm/W | 540mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 7.40mm | - |
|

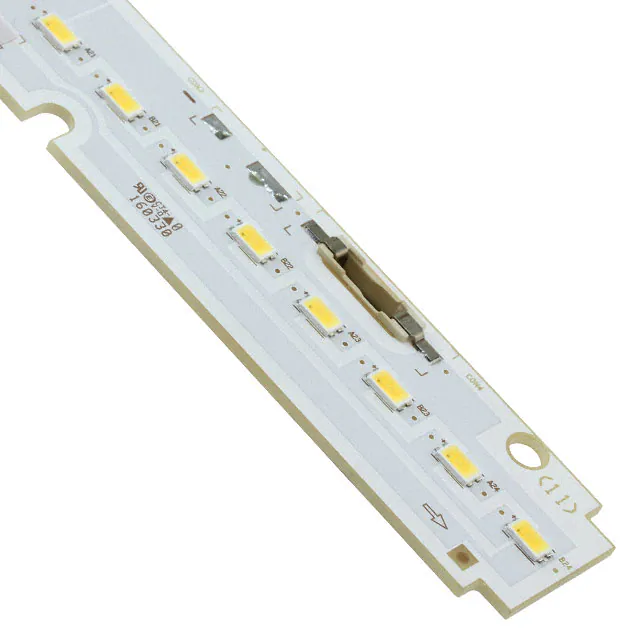

SI-B8V14256SWWLED SLIM 3000K 2180LM BACK WIRE Samsung Semiconductor, Inc. |
122 | - |
RFQ |
데이터시트 |
Tray | LT-S562F | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 800mA | 50°C | 17.6V | 155 lm/W | 1.44A | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 7.40mm | - |
|
SI-B8V141560LDLED SLIM 3000K 2180LM FRONT WIRE Samsung Semiconductor, Inc. |
222 | - |
RFQ |
Tray | LT-S562N | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 400mA | 50°C | 35.2V | 155 lm/W | 720mA | 80 | 115° | With Connector | 560.00mm L x 24.00mm W | 5.80mm | - | |
|
|
SI-B8R141560LDLED SLIM 5000K 2290LM FRONT WIRE Samsung Semiconductor, Inc. |
212 | - |
RFQ |
Tray | LT-S562N | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2290lm (Typ) | 400mA | 50°C | 35.2V | 163 lm/W | 720mA | 80 | 115° | With Connector | 560.00mm L x 24.00mm W | 5.80mm | - | |
|

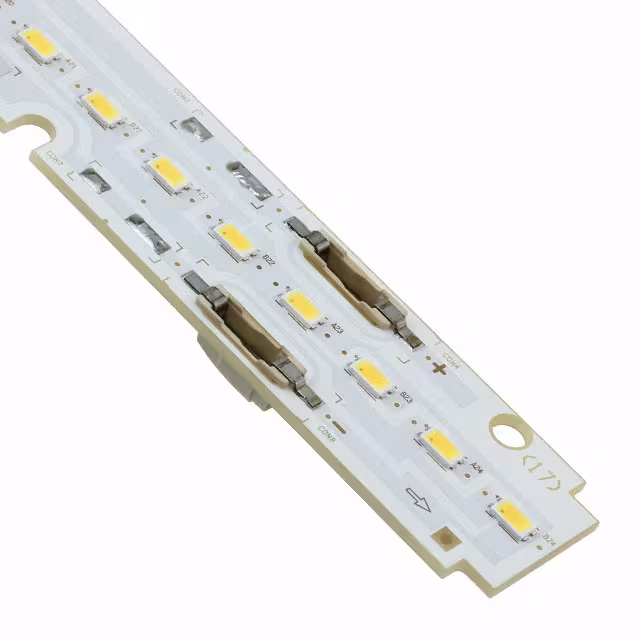

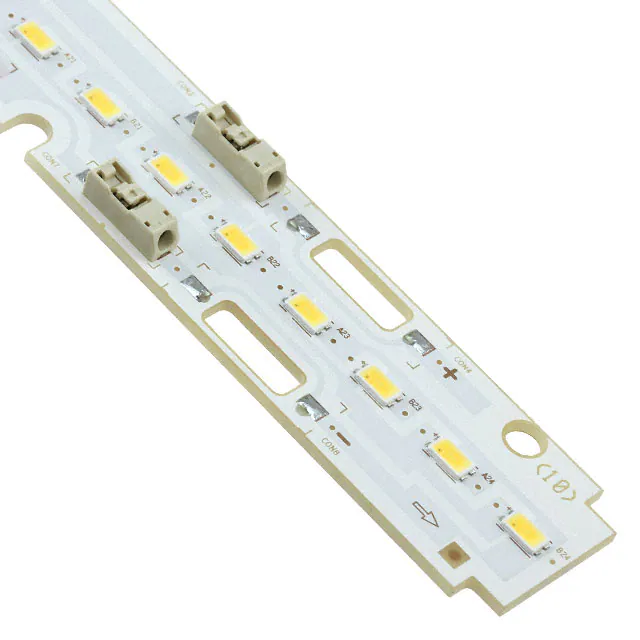

SI-B8R14156LWWLED SLIM 5000K 2290LM FRONT WIRE Samsung Semiconductor, Inc. |
220 | - |
RFQ |
Tray | LT-S562L | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2290lm (Typ) | 400mA | 50°C | 35.2V | 163 lm/W | 720mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - | |
|
|
SI-B8V14156LWWLED SLIM 3000K 2180LM FRONT WIRE Samsung Semiconductor, Inc. |
212 | - |
RFQ |
Tray | LT-S562L | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 400mA | 50°C | 35.2V | 155 lm/W | 720mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - | |
|
SI-B8V14256LWWLED SLIM 3000K 2180LM BACK WIRE Samsung Semiconductor, Inc. |
122 | - |
RFQ |
Tray | LT-S562L | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 400mA | 50°C | 35.2V | 155 lm/W | 720mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 7.40mm | - | |
|
SPHWHAHDNM231ZT3D3LED COB D 4000K SQUARE Samsung Semiconductor, Inc. |
292 | - |
RFQ |
데이터시트 |
Tray | COB D Gen3 | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 14376lm (Typ) | 1.62A | 85°C | 50V | 177 lm/W | 4.14A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
SPHWHAHDNE27YZU3DBLED COB WHT LC016D 3500K 90CRI Samsung Semiconductor, Inc. |
250 | - |
RFQ |
데이터시트 |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2094lm (Typ) | 450mA | 85°C | 34V | 137 lm/W | 900mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
SPHWHAHDNE25YZR3DBLED COB WHT LC016D 5000K 80CRI Samsung Semiconductor, Inc. |
250 | - |
RFQ |
데이터시트 |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2529lm (Typ) | 450mA | 85°C | 34V | 165 lm/W | 900mA | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
SPHWHAHDNE27YZR3DBLED COB WHT LC016D 5000K 90CRI Samsung Semiconductor, Inc. |
250 | - |
RFQ |
데이터시트 |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2200lm (Typ) | 450mA | 85°C | 34V | 144 lm/W | 900mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
SPHWHAHDNE25YZW3DBLED COB WHT LC016D 2700K 80CRI Samsung Semiconductor, Inc. |
250 | - |
RFQ |
데이터시트 |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2305lm (Typ) | 450mA | 85°C | 34V | 151 lm/W | 900mA | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
SPHWHAHDNE27YZV3DBLED COB WHT LC016D 3000K 90CRI Samsung Semiconductor, Inc. |
250 | - |
RFQ |
데이터시트 |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1986lm (Typ) | 450mA | 85°C | 34V | 130 lm/W | 900mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
SPHWHAHDNE27YZT3DBLED COB WHT LC016D 4000K 90CRI Samsung Semiconductor, Inc. |
250 | - |
RFQ |
데이터시트 |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2156lm (Typ) | 450mA | 85°C | 34V | 141 lm/W | 900mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
SPHWHAHDNE25YZU3DBLED COB WHT LC016D 3500K 80CRI Samsung Semiconductor, Inc. |
250 | - |
RFQ |
데이터시트 |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2463lm (Typ) | 450mA | 85°C | 34V | 161 lm/W | 900mA | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
SPHWHAHDNE27YZW3DBLED COB WHT LC016D 2700K 90CRI Samsung Semiconductor, Inc. |
250 | - |
RFQ |
데이터시트 |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1776lm (Typ) | 450mA | 85°C | 34V | 116 lm/W | 900mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
SPHWHAHDNE25YZV3DBLED COB WHT LC016D 3000K 80CRI Samsung Semiconductor, Inc. |
248 | - |
RFQ |
데이터시트 |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2399lm (Typ) | 450mA | 85°C | 34V | 157 lm/W | 900mA | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
