| 사진: | 제조업체 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | Packaging | Series | ProductStatus | Type | OutputType | Direction | FrequencyRange | Sensitivity | S/NRatio | Impedance | Voltage-Rated | VoltageRange | Current-Supply | PortLocation | Ratings | Termination | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TO-30994-000MICROPHONE ANALOG OMNI Knowles |
2,220 | - |
RFQ |
Tray | TO | Active | - | Analog | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - | |
|

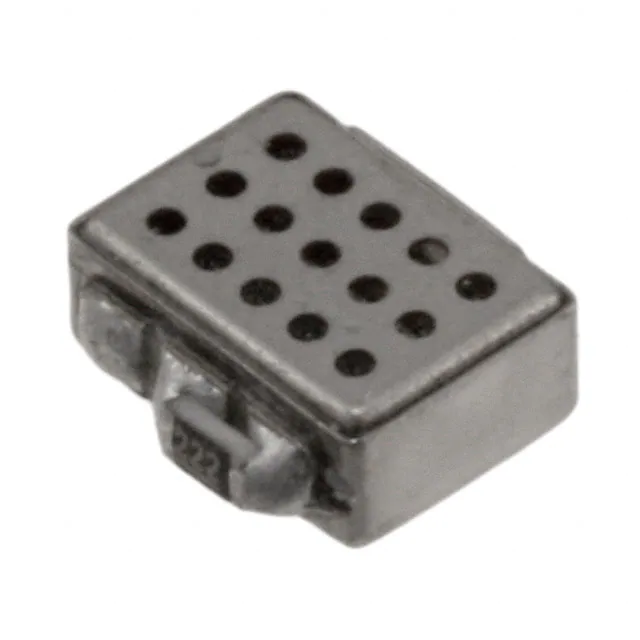

WP-25993-D63MICROPHONE BOOM ANALOG NC -55DB Knowles |
3,097 | - |
RFQ |
데이터시트 |
Tray | WP | Active | Boom | Analog | Noise Cancelling | 100 Hz ~ 4 kHz | -55dB ±4dB @ 74dB SPL | - | 2 kOhms | 1.3 V | 1.3 V ~ 10 V | 300 µA | Bottom, Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.219 L x 0.157 W (5.56mm x 3.99mm) | 0.089 (2.26mm) |
|
|
FG38-30490-C36MICROPHONE COND ANALOG OMNI Knowles |
2,825 | - |
RFQ |
Tray | FG | Active | Electret Condenser | Analog | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - | |
|

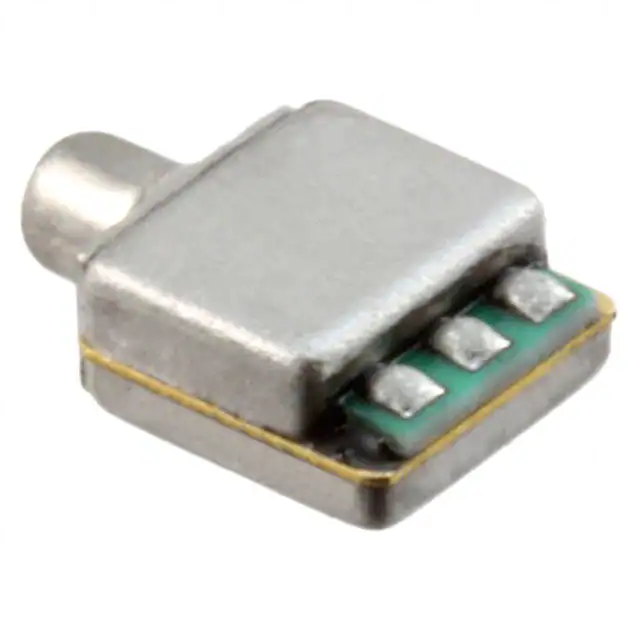

TM-24546-C36MICROPHONE COND ANALOG OMNI Knowles |
2,831 | - |
RFQ |
데이터시트 |
Tray | TM | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 6.4 kHz | -54.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141 L x 0.141 W (3.57mm x 3.57mm) | 0.070 (1.77mm) |
|

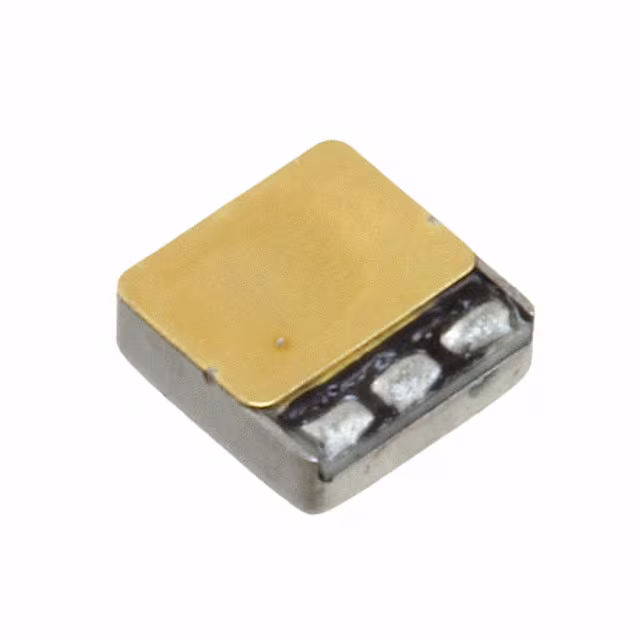

TO38-31018-B20MICROPHONE COND ANALOG OMNI Knowles |
3,683 | - |
RFQ |
Tray | TO | Active | Electret Condenser | Analog | Omnidirectional | 80 Hz ~ 10 kHz | -64.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | - | 0.9 V ~ 1.6 V | 29 µA | Side | - | Solder Pads | 0.141 L x 0.141 W (3.57mm x 3.57mm) | 0.053 (1.35mm) | |
|
|
TO38-30702-B20MICROPHONE Knowles |
3,922 | - |
RFQ |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
BJ-28411-000MICROPHONE MAG ANALOG NC -87DB Knowles |
2,562 | - |
RFQ |
데이터시트 |
Bulk | BJ | Active | Magnetic | Analog | Noise Cancelling | 300 Hz ~ 5 kHz | -87dB ±5dB @ 74dB SPL | - | 300 Ohms | - | - | - | Side | - | Solder Pads | 0.310 L x 0.220 W (7.87mm x 5.59mm) | 0.160 (4.06mm) |
|
|
BJ-21591-000MICROPHONE MAG ANALOG -75DB Knowles |
3,044 | - |
RFQ |
데이터시트 |
Bulk | BJ | Active | Magnetic | Analog | - | 300 Hz ~ 5 kHz | -75dB ±2.5dB @ 74dB SPL | - | 3.9 kOhms | - | - | - | Side | - | Solder Pads | 0.310 L x 0.220 W (7.87mm x 5.59mm) | 0.160 (4.06mm) |
|
|
BJ-28471-000MICROPHONE MAG ANALOG -90DB Knowles |
3,531 | - |
RFQ |
데이터시트 |
Bulk | BJ | Active | Magnetic | Analog | - | 300 Hz ~ 5 kHz | -90dB ±5dB @ 74dB SPL | - | 150 Ohms | - | - | - | Side | - | Solder Pads | 0.310 L x 0.220 W (7.87mm x 5.59mm) | 0.160 (4.06mm) |
|

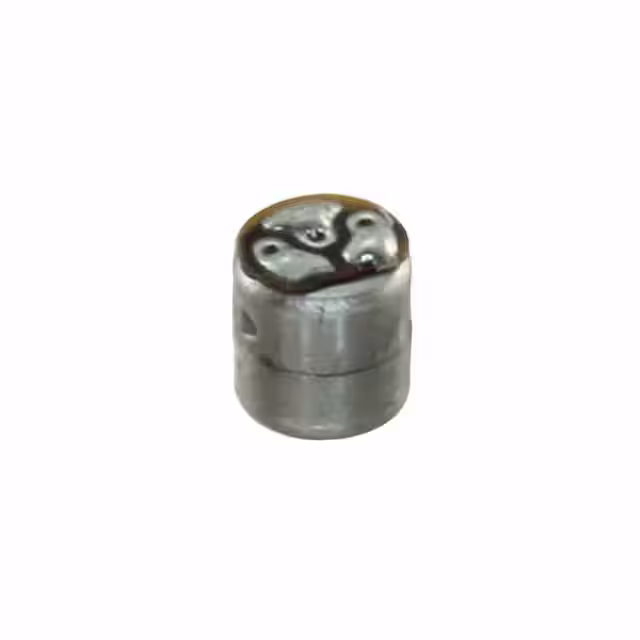

FG-26107-D65MICROPHONE COND ANALOG OMNI Knowles |
2,526 | - |
RFQ |
Tray | FG | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.101 Dia (2.57mm) | 0.102 (2.60mm) | |
|

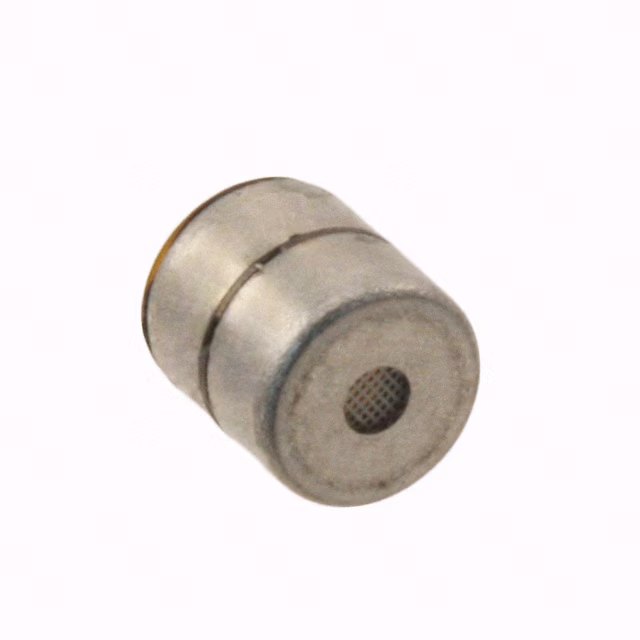

DFG-30445-000MICROPHONE BOOM ANALOG UNI -69DB Knowles |
2,035 | - |
RFQ |
데이터시트 |
Tray | DFG | Active | Boom | Analog | Unidirectional | 100 Hz ~ 10 kHz | -69dB ±4dB @ 74dB SPL | - | 1.7 kOhms | - | 1.3 V ~ 3 V | 50 µA | Bottom, Top | - | Solder Pads | 0.101 Dia (2.57mm) | 0.108 (2.74mm) |
|
|
EM-31144-P58MICROPHONE COND ANALOG OMNI Knowles |
2,597 | - |
RFQ |
Bulk | EM | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | Solder Pads | 0.141 L x 0.141 W (3.57mm x 3.57mm) | 0.090 (2.28mm) | |
|
|
FG45-32335-P03MICROPHONE COND ANALOG OMNI Knowles |
2,883 | - |
RFQ |
데이터시트 |
Bulk | FG45 | Active | Electret Condenser | Analog | Omnidirectional | 80 Hz ~ 1 kHz | -72dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 10 V | 40 µA | Top | - | Solder Pads | 0.101 Dia (2.57mm) | 0.102 (2.60mm) |
|
|
WP-23849-P16MICROPHONE COND ANALOG OMNI Knowles |
2,620 | - |
RFQ |
Bulk | WP | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 9.5 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Bottom | Waterproof | Solder Pads | 0.219 L x 0.157 W (5.56mm x 3.99mm) | 0.089 (2.26mm) | |
|
|
TO-31021-B21MICROPHONE OMNI Knowles |
2,453 | - |
RFQ |
Bulk | TO | Active | - | - | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
EM-26425-C79MIC COND MATCH ANALOG OMNI Knowles |
2,406 | - |
RFQ |
데이터시트 |
Tray | EM | Active | Electret Condenser, Matched Set | Analog | Omnidirectional | 500 Hz ~ 4 kHz | - | - | - | 930 mV | - | - | Side | - | Solder Pads | 0.141 L x 0.141 W (3.57mm x 3.57mm) | 0.090 (2.28mm) |
|
|
EM-26734-D34MIC COND MATCH ANLG UNI -53.5DB Knowles |
2,669 | - |
RFQ |
데이터시트 |
Tray | EM | Active | Electret Condenser, Matched Set | Analog | Unidirectional | 1 kHz ~ 7 kHz | -53.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.1 V | - | 50 µA | Bottom | - | Solder Pads | 0.141 L x 0.141 W (3.57mm x 3.57mm) | 0.090 (2.28mm) |
|
|
NR-30572-000MICROPHONE 0.219 L X 0.157 W Knowles |
2,130 | - |
RFQ |
Bulk | NR | Active | - | - | - | 100 Hz ~ 6 kHz | - | - | - | - | - | - | - | - | Solder Pads | 0.219 L x 0.157 W (5.56mm x 3.99mm) | 0.089 (2.26mm) | |
|
|
BTO-26738-D48MICROPHONE OMNI Knowles |
2,640 | - |
RFQ |
Tray | BTO | Active | - | - | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
BTO-26740-D55MICROPHONE OMNI Knowles |
2,812 | - |
RFQ |
Tray | BTO | Active | - | - | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - |
