PMIC - 전압 레귤레이터 - 선형
| 사진: | 제조업체 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ070XZ01ZZIC REG LINEAR POS ADJ 1A SC63 Sharp Microelectronics |
2,084 | - |
RFQ |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 500mA | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount | |
|
|
PQ070XZ1HZZIC REG LINEAR POS ADJ 1.5A SC63 Sharp Microelectronics |
3,351 | - |
RFQ |
데이터시트 |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 1V @ 1.25A | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ07VZ012ZZIC REG LINEAR POS ADJ 1A SC63 Sharp Microelectronics |
2,505 | - |
RFQ |
데이터시트 |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 500mA | 1A | 7 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
|
PQ09RD21IC REG LINEAR 9V 2A TO220-4 Sharp Microelectronics |
2,470 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 9V | - | 0.5V @ 2A | 2A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ12RA1IC REG LINEAR 12V 1A TO220-4 Sharp Microelectronics |
2,834 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | - | 1A | 8 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ12RD08IC REG LINEAR 12V 800MA TO220-4 Sharp Microelectronics |
2,763 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 12V | - | 0.5V @ 500mA | 800mA | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ12RD11IC REG LINEAR 12V 1A TO220-4 Sharp Microelectronics |
3,310 | - |
RFQ |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 12V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole | |
|
|
PQ12RD21IC REG LINEAR 12V 2A TO220-4 Sharp Microelectronics |
2,263 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 12V | - | 0.5V @ 2A | 2A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|

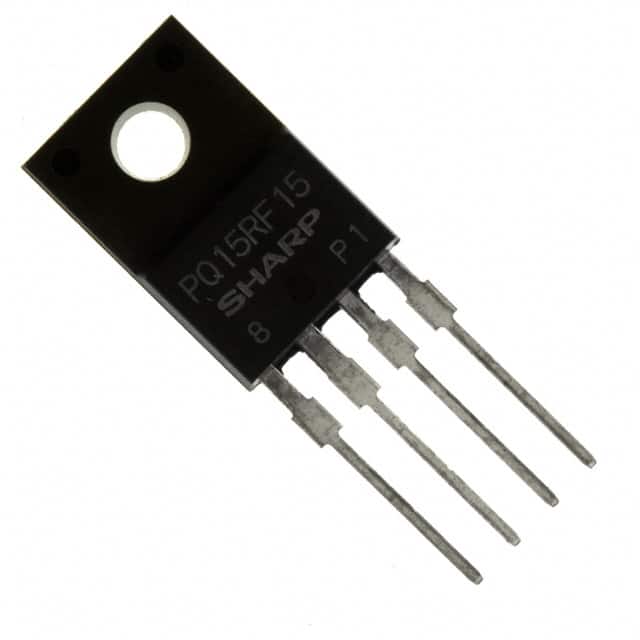

PQ15RF15IC REG LINEAR 15.7V 1A TO220-4 Sharp Microelectronics |
3,383 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 15.7V | - | 0.5A @ 500mA | 1A | 20 µA | - | 65dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|

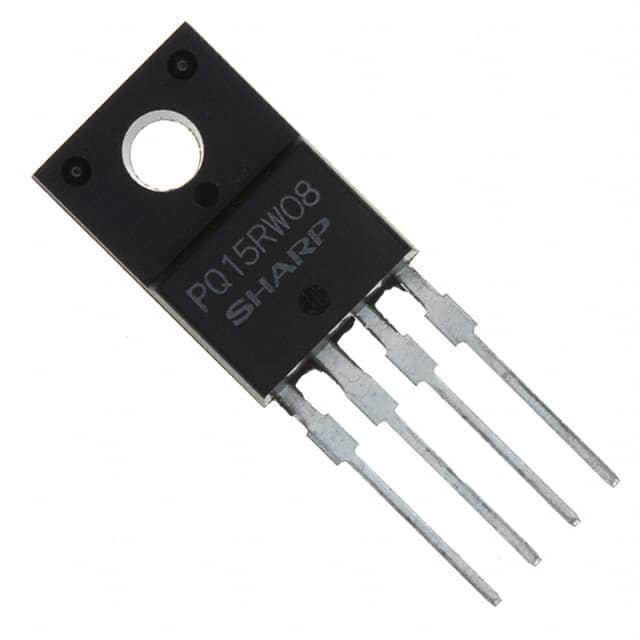

PQ15RW08IC REG LIN POS ADJ 800MA TO220-4 Sharp Microelectronics |
2,127 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Adjustable | 1 | 20V | 3V | 15V | 0.5A @ 500mA | 800mA | 8 mA | - | 55dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ15RW11IC REG LINEAR POS ADJ 1A TO220-4 Sharp Microelectronics |
2,487 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Adjustable | 1 | 20V | 3V | 15V | 0.5A @ 500mA | 1A | 8 mA | - | 55dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ15RW21IC REG LINEAR POS ADJ 2A TO220-4 Sharp Microelectronics |
2,053 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Adjustable | 1 | 20V | 3V | 15V | 0.5V @ 2A | 2A | 8 mA | - | 55dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|

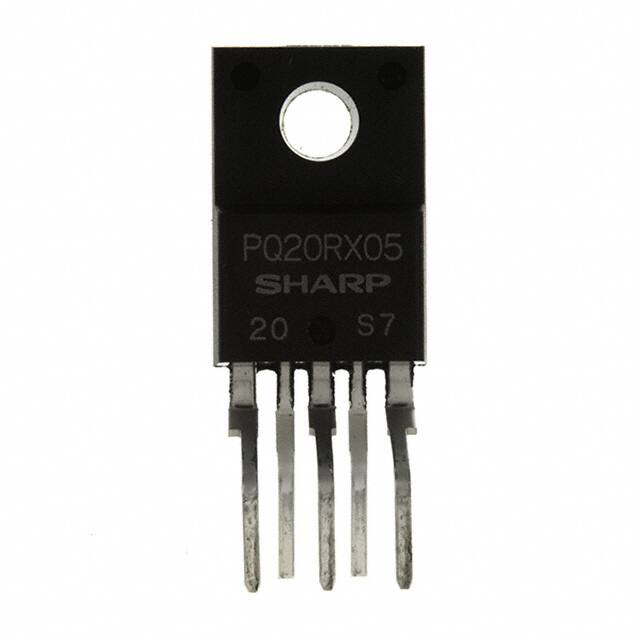

PQ20RX05IC REG LIN POS ADJ 500MA TO220-5 Sharp Microelectronics |
2,806 | - |
RFQ |
데이터시트 |
TO-220-5 Formed Leads | Tube | - | Obsolete | Positive | Adjustable | 1 | 24V | 3V | 20V | 0.5V @ 300mA | 500mA | 8 mA | - | 45dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
PQ20RX11IC REG LINEAR POS ADJ 1A TO220-5 Sharp Microelectronics |
3,868 | - |
RFQ |
데이터시트 |
TO-220-5 Formed Leads | Tube | - | Obsolete | Positive | Adjustable | 1 | 24V | 3V | 20V | 0.5V @ 500mA | 1A | 8 mA | - | 45dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ30RV31IC REG LINEAR POS ADJ 3A TO220-4 Sharp Microelectronics |
2,922 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Adjustable | 1 | 35V | 1.5V | 30V | 1V @ 3A | 3A | 7 mA | - | 70dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
PQ3RD083IC REG LINEAR 3.3V 800MA TO220-4 Sharp Microelectronics |
3,006 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.5V @ 500mA | 800mA | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ3RD13IC REG LINEAR 3.3V 1A TO220-4 Sharp Microelectronics |
2,266 | - |
RFQ |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole | |
|
PQ3RD13BIC REG LINEAR 3.3V 1A TO220-4 Sharp Microelectronics |
2,311 | - |
RFQ |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | - | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole | |
|
|
PQ3RD23IC REG LINEAR 3.3V 2A TO220-4 Sharp Microelectronics |
2,757 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.5V @ 2A | 2A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ3RF33IC REG LINEAR 3.3V 3.5A TO220-4 Sharp Microelectronics |
2,853 | - |
RFQ |
데이터시트 |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 0.5V @ 3A | 3.5A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
