전력 릴레이, 2암페어 이상

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial

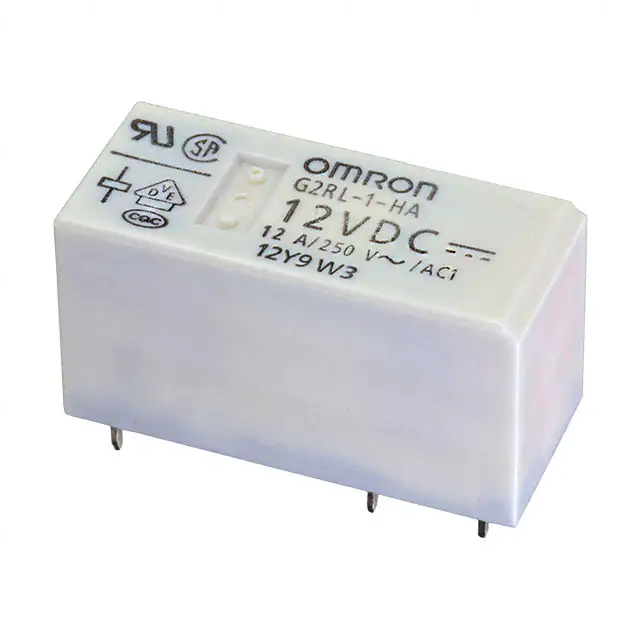

G2RL-1-HA DC12 RELAY GEN PURPOSE SPDT 12A 12V Omron Electronics Inc-EMC Div	2,302	-	RFQ		Tube	G2RL	Active	Through Hole	12VDC	SPDT (1 Form C)	12 A	440VAC, 300VDC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1-HA DC24 RELAY GEN PURPOSE SPDT 12A 24V Omron Electronics Inc-EMC Div	2,483	-	RFQ		Tube	G2RL	Active	Through Hole	24VDC	SPDT (1 Form C)	12 A	440VAC, 300VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1-HA DC5 RELAY GEN PURPOSE SPDT 12A 5V Omron Electronics Inc-EMC Div	3,510	-	RFQ		Tube	G2RL	Active	Through Hole	5VDC	SPDT (1 Form C)	12 A	440VAC, 300VDC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1A-E-CF DC24 RELAY GEN PURPOSE SPST 16A 24V Omron Electronics Inc-EMC Div	2,899	-	RFQ	데이터시트	Tube	G2RL	Active	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	440VAC, 300VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1A4 DC12 RELAY GEN PURPOSE SPST 12A 12V Omron Electronics Inc-EMC Div	500	-	RFQ		Tube	G2RL	Active	Through Hole	12VDC	SPST-NO (1 Form A)	12 A	440VAC, 300VDC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1A4 DC5 RELAY GEN PURPOSE SPST 12A 5V Omron Electronics Inc-EMC Div	3,595	-	RFQ		Tube	G2RL	Active	Through Hole	5VDC	SPST-NO (1 Form A)	12 A	440VAC, 300VDC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1-E DC5 RELAY GEN PURPOSE SPDT 16A 5V Omron Electronics Inc-EMC Div	3,637	-	RFQ		Tube	G2RL	Active	Through Hole	5VDC	SPDT (1 Form C)	16 A	440VAC, 300VDC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1-E DC18 RELAY GEN PURPOSE SPDT 16A 18V Omron Electronics Inc-EMC Div	2,083	-	RFQ		Tube	G2RL	Active	Through Hole	18VDC	SPDT (1 Form C)	16 A	440VAC, 300VDC - Max	22.2 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	12.6 VDC	1.8 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1A4-CF DC24 RELAY GEN PURPOSE SPST 12A 24V Omron Electronics Inc-EMC Div	2,218	-	RFQ	데이터시트	Tube	G2RL	Active	Through Hole	24VDC	SPST-NO (1 Form A)	12 A	440VAC, 300VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1A-E DC18 RELAY GEN PURPOSE SPST 16A 18V Omron Electronics Inc-EMC Div	2,841	-	RFQ		Tube	G2RL	Active	Through Hole	18VDC	SPST-NO (1 Form A)	16 A	440VAC, 300VDC - Max	22.2 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	12.6 VDC	1.8 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-14-CF DC24 RELAY GEN PURPOSE SPDT 12A 24V Omron Electronics Inc-EMC Div	3,551	-	RFQ	데이터시트	Tube	G2RL	Active	Through Hole	24VDC	SPDT (1 Form C)	12 A	440VAC, 300VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1-E DC48 RELAY GEN PURPOSE SPDT 16A 48V Omron Electronics Inc-EMC Div	2,095	-	RFQ		Tube	G2RL	Active	Through Hole	48VDC	SPDT (1 Form C)	16 A	440VAC, 300VDC - Max	9 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1A-E-ASI DC48 RELAY GEN PURPOSE SPST 16A 48V Omron Electronics Inc-EMC Div	3,143	-	RFQ		Tube	G2RL	Active	Through Hole	48VDC	SPST-NO (1 Form A)	16 A	440VAC, 300VDC - Max	9 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-2A DC48 RELAY GEN PURPOSE DPST 8A 48V Omron Electronics Inc-EMC Div	2,859	-	RFQ		Tube	G2RL	Active	Through Hole	48VDC	DPST-NO (2 Form A)	8 A	440VAC, 300VDC - Max	9 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free

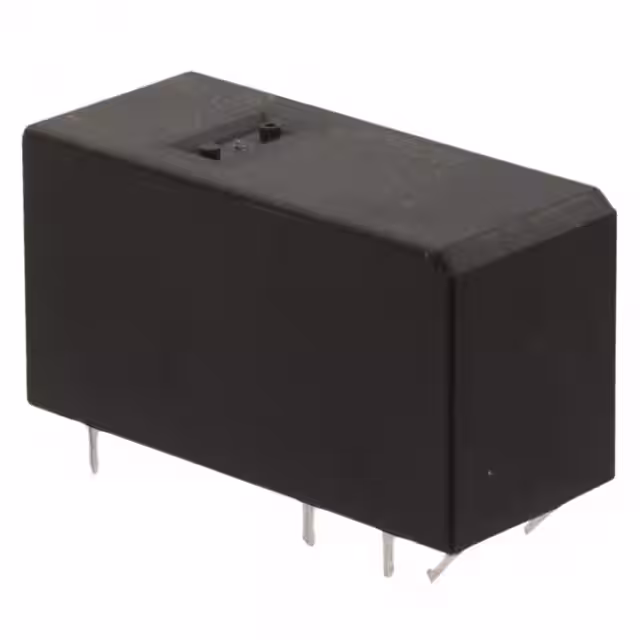

G2RL-2-CF DC24 RELAY GEN PURPOSE DPDT 8A 24V Omron Electronics Inc-EMC Div	2,030	-	RFQ		Tube	G2RL	Active	Through Hole	24VDC	DPDT (2 Form C)	8 A	440VAC, 300VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G5RLU-1A-E DC3 RELAY GEN PURPOSE SPST 16A 3V Omron Electronics Inc-EMC Div	2,841	-	RFQ		Tube	G5RL-U	Active	Through Hole	3VDC	SPST-NO (1 Form A)	16 A	250VAC, 24VDC - Max	200 mA	Latching, Single Coil	-	PC Pin	Sealed - Flux Protection	-	2.1 VDC	-	15 ms	15 ms	-40°C ~ 85°C	-
G5RLU-1A-E DC6 RELAY GEN PURPOSE SPST 16A 6V Omron Electronics Inc-EMC Div	3,245	-	RFQ		Tube	G5RL-U	Active	Through Hole	6VDC	SPST-NO (1 Form A)	16 A	250VAC, 24VDC - Max	100 mA	Latching, Single Coil	-	PC Pin	Sealed - Flux Protection	-	4.2 VDC	-	15 ms	15 ms	-40°C ~ 85°C	-
G2RL-1-H DC5 RELAY GEN PURPOSE SPDT 10A 5V Omron Electronics Inc-EMC Div	2,783	-	RFQ		Tube	G2RL	Active	Through Hole	5VDC	SPDT (1 Form C)	10 A	440VAC, 300VDC - Max	50 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	3.75 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G2RL-1-H DC24 RELAY GEN PURPOSE SPDT 10A 24V Omron Electronics Inc-EMC Div	2,804	-	RFQ		Tube	G2RL	Active	Through Hole	24VDC	SPDT (1 Form C)	10 A	440VAC, 300VDC - Max	10.4 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	18 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Alloy, Cadmium Free
G5RL-U1-E-DC24 RELAY GEN PURPOSE SPDT 16A 24V Omron Electronics Inc-EMC Div	3,669	-	RFQ		Tube	G5RL-U	Active	Through Hole	24VDC	SPDT (1 Form C)	16 A	250VAC, 24VDC - Max	25 mA	Latching, Single Coil	-	PC Pin	Sealed - Flux Protection	-	16.8 VDC	-	15 ms	15 ms	-40°C ~ 85°C	-
