전력 변압기

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
F16-150 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,198	-	RFQ	데이터시트	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 300mA, Series 150mA	Single	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
VPP12-200 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	1,601	-	RFQ	데이터시트	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 400mA, Series 200mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	28.58mm	4000Vrms
VPP28-090 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,127	-	RFQ	데이터시트	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 180mA, Series 90mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	28.58mm	4000Vrms
VPP12-400 PWR XFMR LAMINATED 5VA TH Triad Magnetics	3,753	-	RFQ	데이터시트	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 800mA, Series 400mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms
FS24-250-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	4,990	-	RFQ	데이터시트	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	4200Vrms

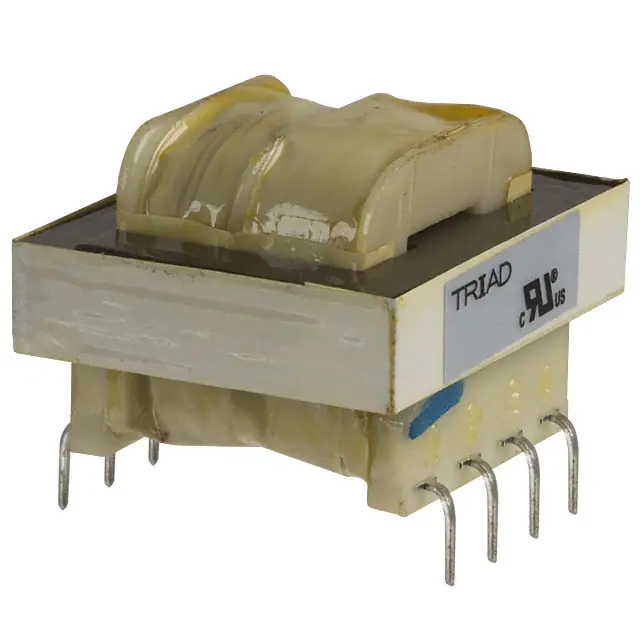

FS12-090 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	1,254	-	RFQ	데이터시트	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 180mA, Series 90mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	23.80mm	2500Vrms
FS10-250 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	520	-	RFQ	데이터시트	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	30.15mm	2500Vrms
FD5-24 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,898	-	RFQ	데이터시트	Box	Quick Pack	Active	Laminated Core	115V, 230V	24V	500mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
F4-24 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	411	-	RFQ	데이터시트	Bulk	Quick Pack	Active	Laminated Core	115V	24V	250mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
FP24-100 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	276	-	RFQ	데이터시트	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 200mA, Series 100mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
F7-24 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,526	-	RFQ	데이터시트	Box	Quick Pack	Active	Laminated Core	115V	24V	2.4A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
TCT50-05E07AB PWR XFMR LAMINATED 50VA CHAS MT Triad Magnetics	3,705	-	RFQ	데이터시트	Box	Class 2, TCT	Active	Laminated Core	120V, 208V, 240V	24V	2.08A	Single, Multiple Taps	Single	No	50VA	Chassis Mount	Solder, Quick Connect	92.46mm L x 56.67mm W	57.40mm	1500Vrms
TCT40-01E07AB PWR XFMR LAMINATED 40VA CHAS MT Triad Magnetics	891	-	RFQ	데이터시트	Box	Class 2, TCT	Active	Laminated Core	120V	24V	1.67A	Single	Single	No	40VA	Chassis Mount	Solder, Quick Connect	92.46mm L x 56.67mm W	57.40mm	1500Vrms

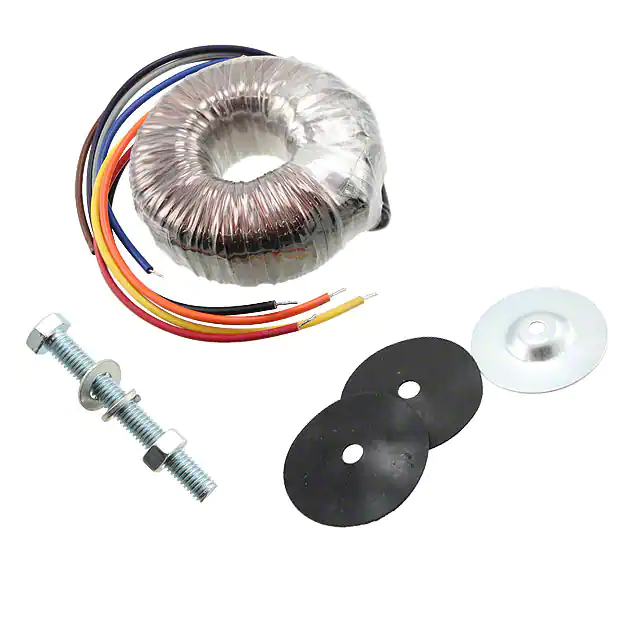

VPT30-830 PWR XFMR TORO 25VA CHAS MT Triad Magnetics	146	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 1.66A, Series 830mA	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	71.00mm Dia x 32.00mm W	34.0mm	4000Vrms

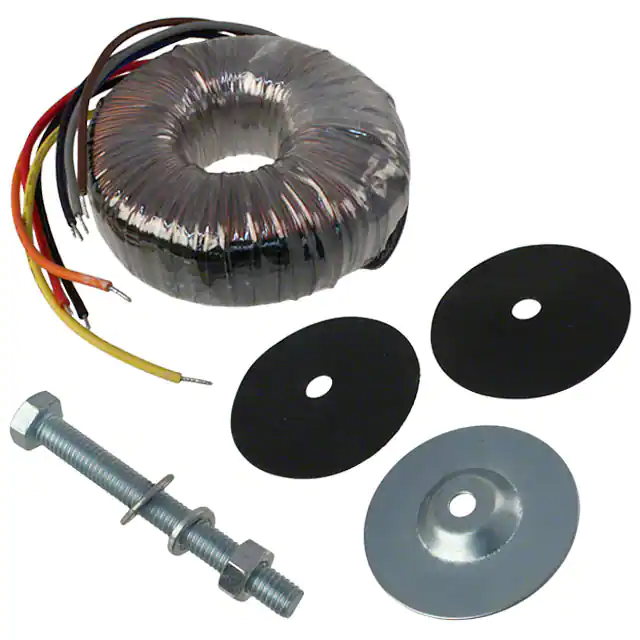

VPT18-2780 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	3,740	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 5.56A, Series 2.78A	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	80.00mm Dia x 33.00mm W	36.0mm	4000Vrms
F-221U PWR XFMR LAMINATED 96VA CHAS MT Triad Magnetics	2,244	-	RFQ	데이터시트	Box	Single Secondary	Active	Laminated Core	115V	12V	8A	Single	Single	No	96VA	Chassis Mount	Wire Leads	79.38mm L x 63.50mm W	96.82mm	1500Vrms
VPS24-7300 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	3,002	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 14.6A, Series 7.3A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.50mm L x 71.37mm W	95.25mm	4000Vrms
F-401U PWR XFMR LAMINATED 240VA CHAS MT Triad Magnetics	3,817	-	RFQ	데이터시트	Box	Single Secondary	Active	Laminated Core	115V	24V	10A	Single	Single	Yes	240VA	Chassis Mount	Wire Leads	87.30mm L x 95.25mm W	104.77mm	1500Vrms

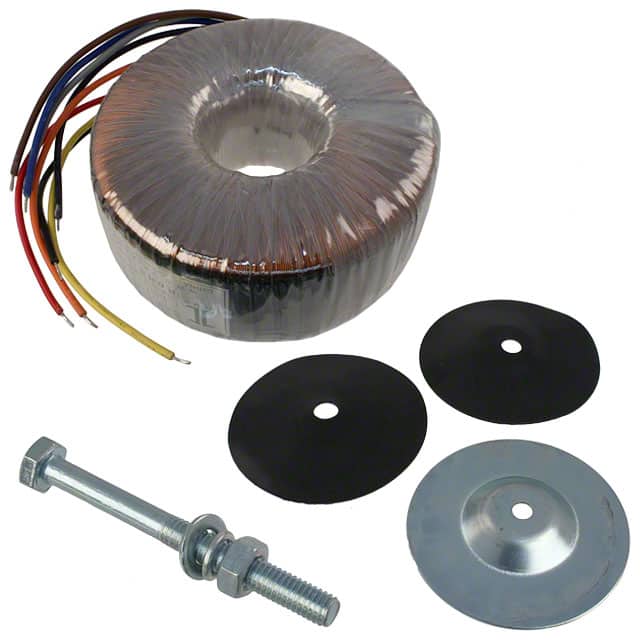

VPT230-700 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	2,302	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 1.4A, Series 700mA	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	103.00mm Dia x 48.00mm W	52.0mm	4000Vrms
F-359XP PWR XFMR LAMINATED 10VA CHAS MT Triad Magnetics	3,808	-	RFQ	데이터시트	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 900mA, Series 450mA	Dual	Dual	No	10VA	Chassis Mount	PC Pin	71.42mm L x 36.50mm W	41.28mm	1500Vrms
