더 많은 제품 카테고리

전력 변압기

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

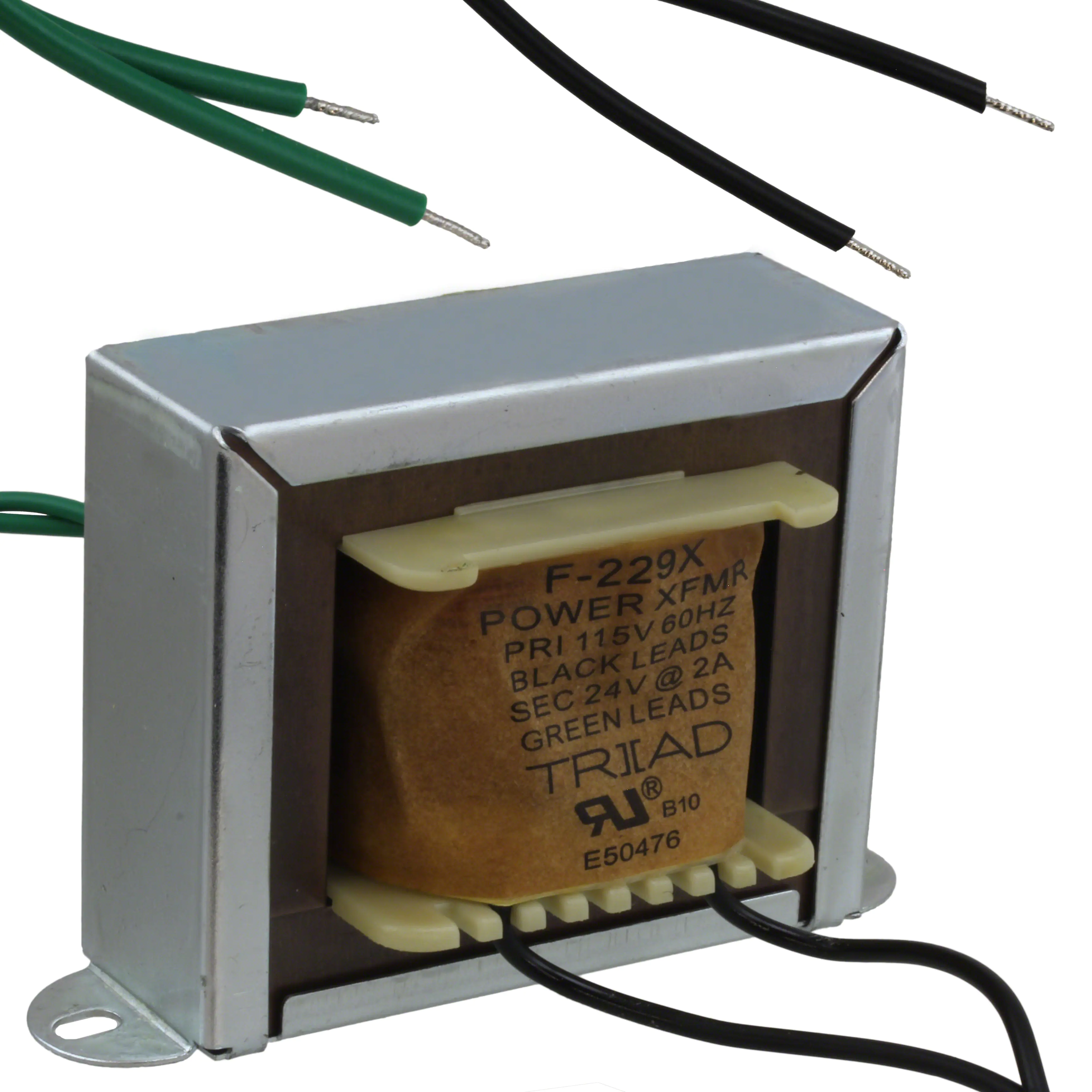

F-229X PWR XFMR LAMINATED 48VA CHAS MT Triad Magnetics	2,657	-	RFQ	데이터시트	Box	Single Secondary	Active	Laminated Core	115V	24V	2A	Single	Single	No	48VA	Chassis Mount	Wire Leads	101.60mm L x 50.80mm W	65.07mm	1500Vrms
VPS24-3300 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	2,985	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 6.6A, Series 3.3A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
FD8-120 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	3,718	-	RFQ	데이터시트	Box	Quick Pack	Active	Laminated Core	115V, 230V	120V	850mA	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
VPP36-140 PWR XFMR LAMINATED 5VA TH Triad Magnetics	4,619	-	RFQ	데이터시트	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 280mA, Series 140mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms
VPT48-1040 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	3,005	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 24V, Series 48V	Parallel 2.08A, Series 1.04A	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	80.00mm Dia x 33.00mm W	36.0mm	4000Vrms
VPT12-4170 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	2,780	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 6V, Series 12V	Parallel 8.34A, Series 4.17A	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	80.00mm Dia x 33.00mm W	36.0mm	4000Vrms
VPS230-570 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	3,220	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 1.14A, Series 570mA	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	60.45mm L x 68.33mm W	85.85mm	4000Vrms
F-273U PWR XFMR LAMINATED 240VA CHAS MT Triad Magnetics	3,137	-	RFQ	데이터시트	Box	Single Secondary	Active	Laminated Core	115V	40V	6A	Single	Single	Yes	240VA	Chassis Mount	Wire Leads	95.25mm L x 101.60mm W	114.30mm	1500Vrms
VPT36-2780 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	3,346	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 18V, Series 36V	Parallel 5.56A, Series 2.78A	Dual	Dual	No	100VA	Chassis Mount	Wire Leads	87.00mm Dia x 47.00mm W	51.0mm	4000Vrms
VPT24-4170 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	3,835	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 8.34A, Series 4.17A	Dual	Dual	No	100VA	Chassis Mount	Wire Leads	87.00mm Dia x 47.00mm W	51.0mm	4000Vrms
VPS230-760 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	3,584	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 1.52A, Series 760mA	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.50mm L x 71.37mm W	95.25mm	4000Vrms
VPT36-4440 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	3,240	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 18V, Series 36V	Parallel 8.88A, Series 4.44A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	103.00mm Dia x 48.00mm W	52.0mm	4000Vrms

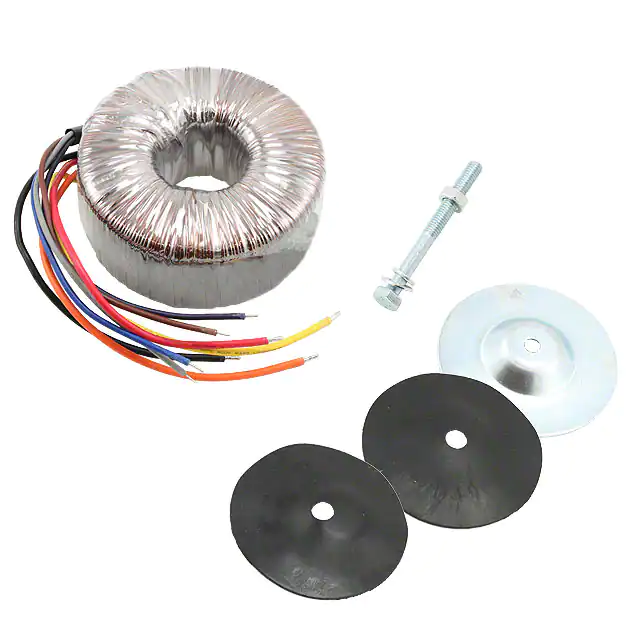

VPT24-6670 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	3,097	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 13.34A, Series 6.67A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	103.00mm Dia x 48.00mm W	52.0mm	4000Vrms
VPT36-6940 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	2,980	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 18V, Series 36V	Parallel 13.88A, Series 6.94A	Dual	Dual	No	250VA	Chassis Mount	Wire Leads	112.00mm Dia x 54.00mm W	58.0mm	4000Vrms
VPT12-20800 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	2,465	-	RFQ	데이터시트	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 6V, Series 12V	Parallel 41.6A, Series 20.8A	Dual	Dual	No	250VA	Chassis Mount	Wire Leads	112.00mm Dia x 54.00mm W	58.0mm	4000Vrms
VPM240-670 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	2,069	-	RFQ	데이터시트	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 120V, Series 240V	Parallel 1.33A, Series 670mA	Dual, Multiple Taps	Dual	No	160VA	Chassis Mount	Wire Leads	113.00mm Dia	52.00mm	4000Vrms
VPM240-15600 PWR XFMR TORO 3750VA CHAS MT Triad Magnetics	2,621	-	RFQ	데이터시트	Bulk	Toroidal Medical, VPM	Active	Toroidal	208V, 240V	Parallel 120V, Series 240V	Parallel 31.2A, Series 15.6A	Dual, Multiple Taps	Dual	No	3750VA	Chassis Mount	Wire Leads	235.00mm Dia	140.00mm	4000Vrms
VPM240-20800 PWR XFMR TORO 5000VA CHAS MT Triad Magnetics	2,101	-	RFQ	데이터시트	Bulk	Toroidal Medical, VPM	Active	Toroidal	208V, 240V	Parallel 120V, Series 240V	Parallel 41.6A, Series 20.8A	Dual, Multiple Taps	Dual	No	5000VA	Chassis Mount	Wire Leads	277.00mm Dia	140.00mm	4000Vrms

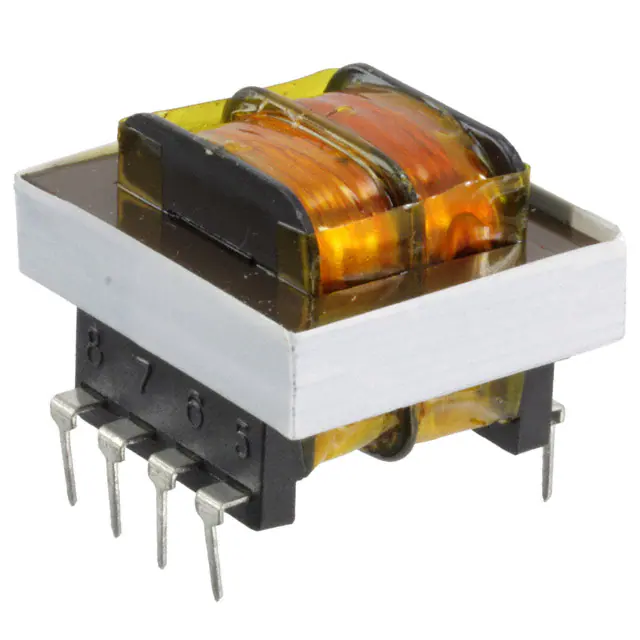

FS28-040-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,176	-	RFQ	데이터시트	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 80mA, Series 40mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	4200Vrms
F24-045-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,899	-	RFQ	데이터시트	Tube	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 90mA, Series 45mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
