스피커

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Technology	Type	FrequencyRange	Frequency-SelfResonant	Impedance	Efficiency-dBA	Efficiency-Testing	Efficiency-Type	Power-Rated	Power-Max	PortLocation	Shape	Material-Cone	Material-Magnet	IngressProtection	Ratings	Termination	Size/Dimension

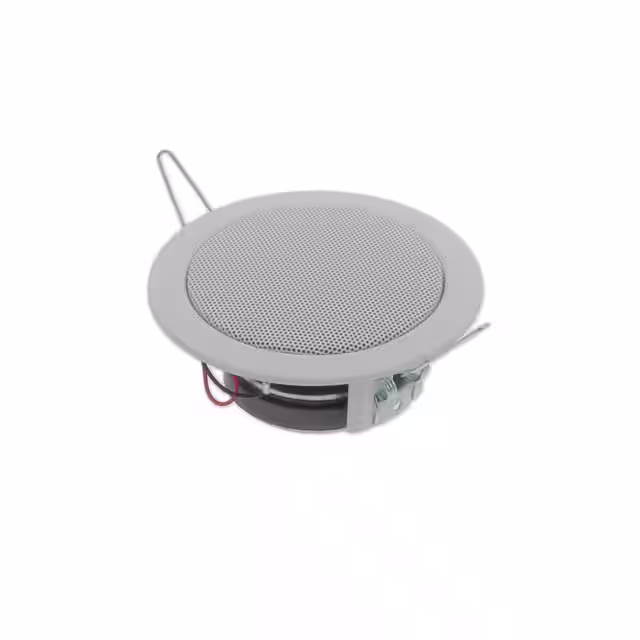

DL 8 - 8 OHM CEILING MOUNTED SPEAKER Visaton GmbH & Co. KG	2,332	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	General Purpose	90 Hz ~ 18 kHz	190Hz	8 Ohms	90.00	1W/1M	Sound Pressure Level (SPL)	10 W	30 W	Top	Round	-	-	IP54	-	Wire Leads	4.134 Dia (105.00mm)

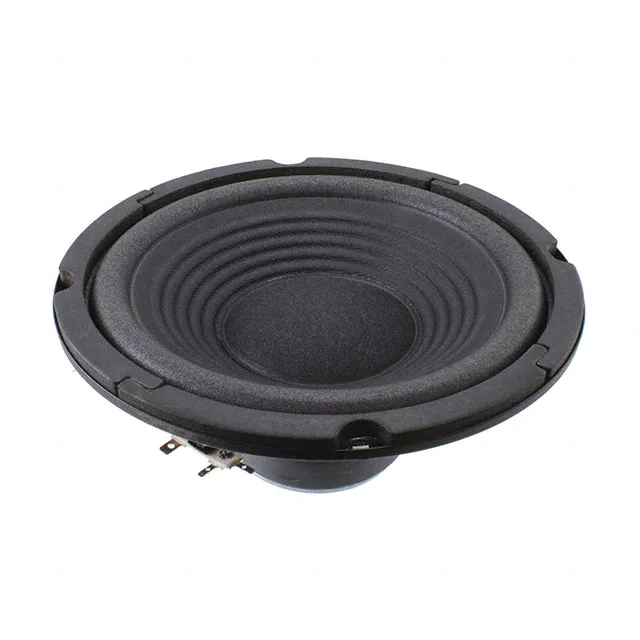

W 200 - 8 OHM HIFI WOOFER Visaton GmbH & Co. KG	2,359	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	General Purpose	46 Hz ~ 8 kHz	46Hz	8 Ohms	88.00	1W/1M	Sound Pressure Level (SPL)	50 W	80 W	Top	Round	-	-	-	-	Quick Connect	8.110 Dia (206.00mm)
DL 8 ES - 8 OHM CEILING MOUNTED SPEAKER Visaton GmbH & Co. KG	3,432	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	General Purpose	100 Hz ~ 20 kHz	173Hz	8 Ohms	84.00	1W/1M	Sound Pressure Level (SPL)	10 W	30 W	Top	Round	-	-	IP54	-	Wire Leads	4.134 Dia (105.00mm)

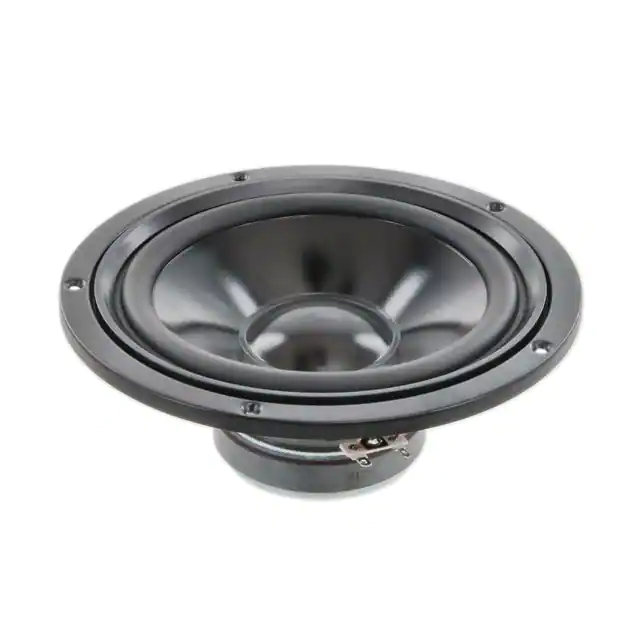

W 200 S - 4 OHM HIFI LOW-MIDRANGE DRIVER Visaton GmbH & Co. KG	2,192	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	General Purpose	29 Hz ~ 6 kHz	29Hz	4 Ohms	88.00	1W/1M	Sound Pressure Level (SPL)	75 W	115 W	Top	Round	Paper	-	-	-	Quick Connect	9.134 Dia (232.00mm)

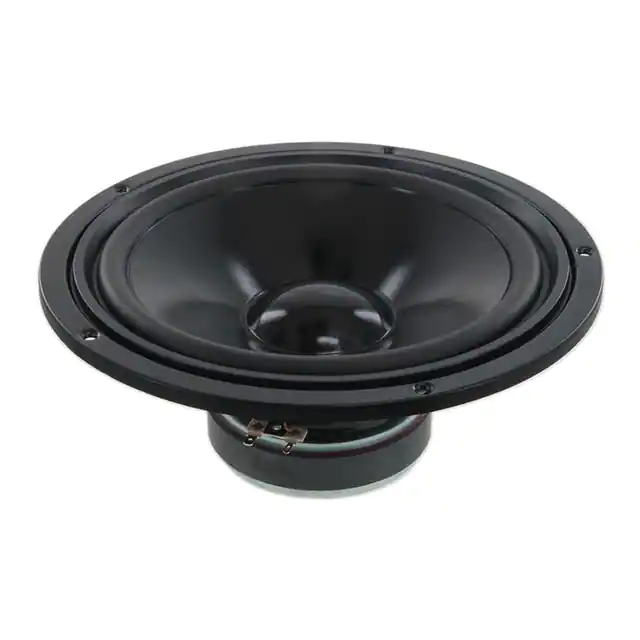

W 250 S - 4 OHM HIFI LOW-MIDRANGE DRIVER Visaton GmbH & Co. KG	2,949	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	General Purpose	33 Hz ~ 5.5 kHz	33Hz	4 Ohms	90.00	1W/1M	Sound Pressure Level (SPL)	100 W	150 W	Top	Round	Paper	-	-	-	Quick Connect	11.142 Dia (283.00mm)

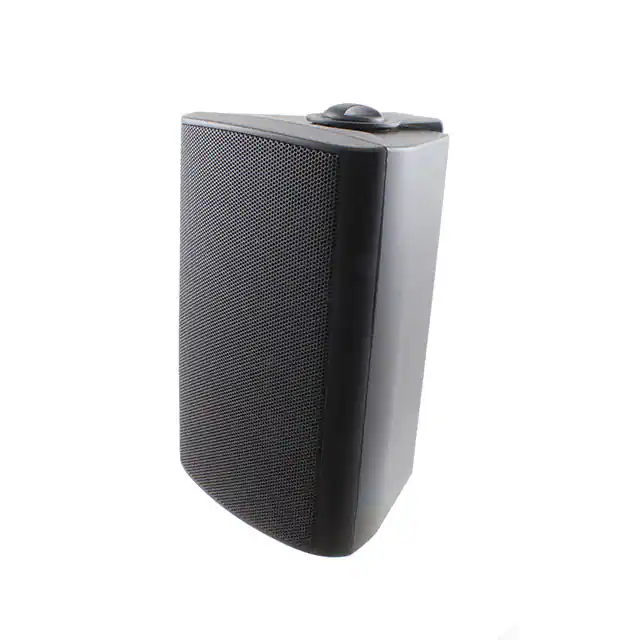

WB 10 - 100 V/8 OHM (BLACK) 2-WAY COMPACT SPEAKER Visaton GmbH & Co. KG	2,220	-	RFQ	데이터시트	Bulk	-	Active	-	Tweeter	100 Hz ~ 20 kHz	-	8 Ohms	91.00	1W/1M	Sound Pressure Level (SPL)	40 W	60 W	User Defined	Rectangular	-	-	IP54	-	-	4.528 Dia x 8.189 L (115.00mm x 208.00mm)
WF 130 ND - 8 OHM LOW-MIDRANGE DRIVER Visaton GmbH & Co. KG	3,256	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	General Purpose	46 Hz ~ 10 kHz	46Hz	8 Ohms	84.00	1W/1M	Sound Pressure Level (SPL)	40 W	60 W	Top	Round	Polypropylene (PP)	Nd	-	-	Solder Eyelet(s)	5.846 Dia (148.50mm)

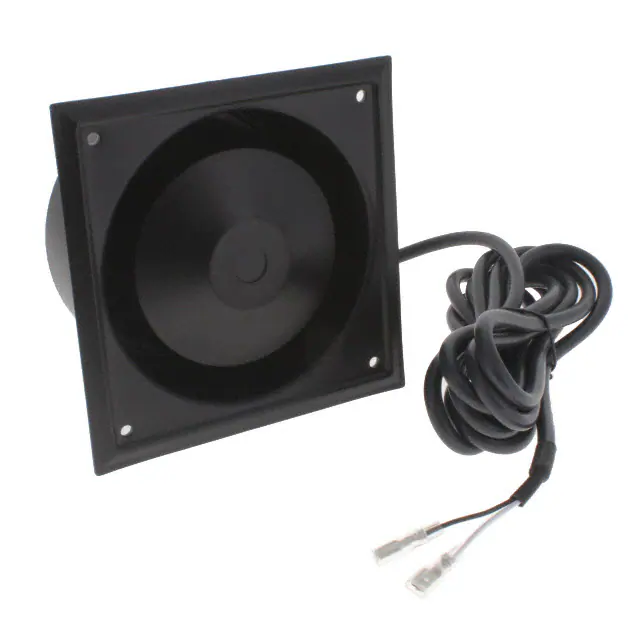

DK 121 - 8 OHM RE-ENTRANT HORN SPEAKER Visaton GmbH & Co. KG	3,592	-	RFQ	데이터시트	Bulk	-	Active	-	General Purpose	570 Hz ~ 4.4 kHz	-	8 Ohms	104.00	1W/1M	Sound Pressure Level (SPL)	10 W	15 W	Top	Round, Square Frame	Polypropylene (PP)	-	Waterproof	-	Wire Leads	3.996 Dia x 4.764 L (101.50mm x 121.00mm)
PL 7 RV - 8 OHM FLUSH-MOUNTED SPEAKER Visaton GmbH & Co. KG	3,437	-	RFQ	데이터시트	Bulk	-	Active	-	-	400 Hz ~ 5 kHz	550Hz	8 Ohms	88.00	1W/1M	Sound Pressure Level (SPL)	10 W	20 W	User Defined	Round	-	-	-	-	Wire Leads	2.992 Dia (76.00mm)
PL 7 RV - 4 OHM FLUSH-MOUNTED SPEAKER Visaton GmbH & Co. KG	2,984	-	RFQ	데이터시트	Bulk	-	Active	-	-	400 Hz ~ 5 kHz	550Hz	4 Ohms	88.00	1W/1M	Sound Pressure Level (SPL)	10 W	20 W	User Defined	Round	-	-	-	-	Wire Leads	2.992 Dia (76.00mm)
FRW 10 N - 8 OHM FULL-RANGE SPEAKER Visaton GmbH & Co. KG	3,329	-	RFQ	데이터시트	Bulk	-	Active	-	-	80 Hz ~ 17 kHz	120Hz	8 Ohms	86.00	1W/1M	Sound Pressure Level (SPL)	10 W	20 W	Top	Round, Square Frame	-	-	-	-	Quick Connect	4.016 L x 4.016 W (102.00mm x 102.00mm)
FR 8 JS - 8 OHM FULL-RANGE SPEAKER Visaton GmbH & Co. KG	3,474	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	-	80 Hz ~ 20 kHz	130Hz	8 Ohms	83.00	1W/1M	Sound Pressure Level (SPL)	10 W	15 W	Top	Round, Square Frame	Polypropylene (PP)	-	IP64 - Dust Tight, Water Resistant	-	Solder Eyelet(s)	-
R 10 SC - 4 OHM MAGNETICALLY SHIELDED FULL-RANGE Visaton GmbH & Co. KG	2,328	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	-	100 Hz ~ 13 kHz	165Hz	4 Ohms	90.00	1W/1M	Sound Pressure Level (SPL)	20 W	30 W	Top	Round, Square Frame	-	-	IP64/IP67 - Dust Tight, Water Resistant, Waterproof	-	Quick Connect	4.016 L x 4.016 W (102.00mm x 102.00mm)
FRS 7 W - 8 OHM FULL-RANGE SPEAKER Visaton GmbH & Co. KG	2,155	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	-	120 Hz ~ 20 kHz	160Hz	8 Ohms	86.00	1W/1M	Sound Pressure Level (SPL)	8 W	15 W	Top	Round, Square Frame	-	-	-	-	Quick Connect	5.748 Dia x 2.618 L (146.00mm x 66.50mm)
TW 6 NG - 8 OHM CONE TWEETER Visaton GmbH & Co. KG	3,789	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	Tweeter	1 kHz ~ 30 kHz	1.5kHz	8 Ohms	91.00	1W/1M	Sound Pressure Level (SPL)	60 W	100 W	Top	Round, Square Frame	-	-	-	-	Quick Connect	2.362 L x 2.362 W (60.00mm x 60.00mm)
TW 70 - 8 OHM CONE TWEETER Visaton GmbH & Co. KG	2,480	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	Tweeter	800 Hz ~ 20 kHz	1.5kHz	8 Ohms	90.00	1W/1M	Sound Pressure Level (SPL)	40 W	60 W	Top	Round, Square Frame	-	-	-	-	Quick Connect	-
M 10 - 8 OHM CONE MIDRANGE DRIVER Visaton GmbH & Co. KG	3,720	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	-	450 Hz ~ 13 kHz	700Hz	8 Ohms	90.00	1W/1M	Sound Pressure Level (SPL)	80 W	100 W	Top	Round, Square Frame	-	-	-	-	Quick Connect	4.016 L x 4.016 W (102.00mm x 102.00mm)
DTW 72 - 8 OHM POLYCARBONATE DOME DRIVER Visaton GmbH & Co. KG	2,372	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	-	2.2 kHz ~ 23 kHz	3kHz	8 Ohms	91.00	1W/1M	Sound Pressure Level (SPL)	-	-	Top	Round	-	-	-	-	-	2.835 Dia (72.00mm)
BG 13 P - 8 OHM FULL-RANGE SPEAKER Visaton GmbH & Co. KG	3,340	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	Tweeter	120 Hz ~ 20 kHz	168Hz	8 Ohms	92.00	1W/1M	Sound Pressure Level (SPL)	20 W	40 W	Top	Round	-	-	-	-	Quick Connect	5.157 Dia (131.00mm)
WS 13 E - 8 OHM FULLRANGE DRIVER Visaton GmbH & Co. KG	3,247	-	RFQ	데이터시트	Bulk	-	Active	Magnetic	-	83 Hz ~ 12 kHz	83Hz	8 Ohms	86.00	1W/1M	Sound Pressure Level (SPL)	40 W	60 W	Top	Round, Square Frame	Paper	-	-	-	Quick Connect	-
