LED 조명 - COB, 엔진, 모듈, 스트립

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
CXM-27-27-95-36-AA00-F2-2 LED COB WHT 26.5MM 2700K 95CRI Luminus Devices Inc.	2,469	-	RFQ	데이터시트	Tray	CXM-27	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Square	5148lm (5015lm ~ 5280lm)	1.8A	85°C	35V	82 lm/W	2.7A	95	120°	-	31.50mm L x 31.50mm W	1.37mm	26.50mm Dia
CXM-27-30-95-36-AA00-F2-2 LED COB WHT 26.5MM 3000K 95CRI Luminus Devices Inc.	2,760	-	RFQ	데이터시트	Tray	CXM-27	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Square	5820lm (5670lm ~ 5970lm)	1.8A	85°C	35V	92 lm/W	2.7A	95	120°	-	31.50mm L x 31.50mm W	1.37mm	26.50mm Dia
CHM-27-27-95-36-AA00-F2-3 LED COB CHM27 WARM WHITE SQUARE Luminus Devices Inc.	3,811	-	RFQ	데이터시트	Tray	CHM-27	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	7140lm (Typ)	2.7A	85°C	35V	76 lm/W	5.4A	95	120°	-	27.90mm L x 27.90mm W	1.37mm	26.50mm Dia
CHM-27-30-95-36-AA00-F2-3 LED COB CHM27 WARM WHITE SQUARE Luminus Devices Inc.	2,676	-	RFQ	데이터시트	Tray	CHM-27	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	8085lm (Typ)	2.7A	85°C	35V	86 lm/W	5.4A	95	120°	-	27.90mm L x 27.90mm W	1.37mm	26.50mm Dia
CHM-27-27-95-36-AB00-F2-3 LED COB Luminus Devices Inc.	3,948	-	RFQ	데이터시트	Tray	CHM-27	Not For New Designs	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	7140lm (Typ)	2.7A	85°C	35V	76 lm/W	4A	95	120°	-	31.50mm L x 31.50mm W	1.37mm	26.50mm Dia
CHM-27-30-95-36-AB00-F2-3 LED COB Luminus Devices Inc.	3,712	-	RFQ	데이터시트	Tray	CHM-27	Not For New Designs	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	8085lm (Typ)	2.7A	85°C	35V	86 lm/W	4A	95	120°	-	31.50mm L x 31.50mm W	1.37mm	26.50mm Dia
CXM-18-30-80-36-AA30-F4-3 LED COB 3000K SQUARE Luminus Devices Inc.	3,174	-	RFQ	데이터시트	Tray	CXM-18 Gen3	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	4605lm (Typ)	900mA	85°C	34V	150 lm/W	2A	80	120°	-	21.50mm L x 21.50mm W	1.37mm	17.50mm Dia
CXM-27-27-80-54-AC30-F4-3 LED COB Luminus Devices Inc.	2,491	-	RFQ		Tray	CXM-11 Gen3	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	-	-	85°C	51V	-	3.2A	80	120°	-	31.50mm L x 31.50mm W	1.37mm	26.49mm Dia
CXM-27-27-90-54-AC30-F4-3 LED COB Luminus Devices Inc.	3,515	-	RFQ		Tray	CXM-11 Gen3	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	-	-	85°C	51V	-	3.2A	90	120°	-	31.50mm L x 31.50mm W	1.37mm	26.49mm Dia

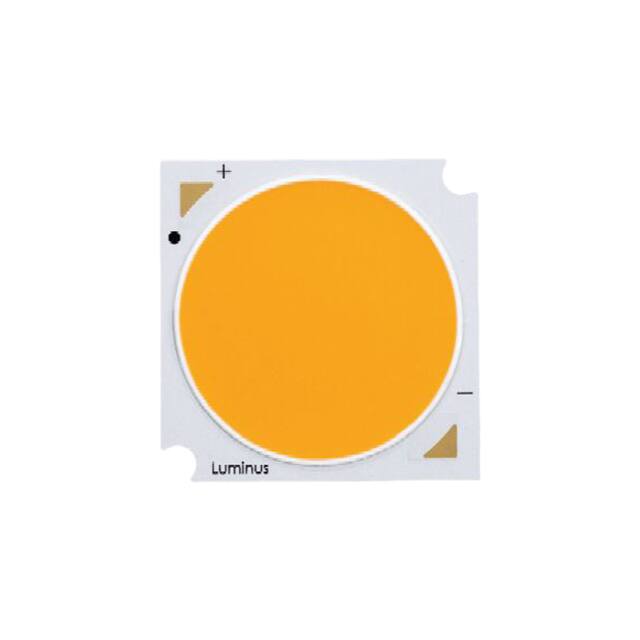

CXM-27-30-80-54-AA30-F4-3 LED COB 3000K SQUARE Luminus Devices Inc.	2,104	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	12400lm (Typ)	1.6A	85°C	51V	152 lm/W	3.2A	80	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
CXM-27-30-90-54-AA30-F4-3 LED COB 3000K SQUARE Luminus Devices Inc.	3,972	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	10430lm (Typ)	1.6A	85°C	51V	128 lm/W	3.2A	90	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
CXM-27-35-80-54-AA30-F4-3 LED COB 3500K SQUARE Luminus Devices Inc.	3,551	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	12770lm (Typ)	1.6A	85°C	51V	156 lm/W	3.2A	80	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
CXM-27-35-90-54-AA30-F4-3 LED COB 3500K SQUARE Luminus Devices Inc.	3,837	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	10640lm (Typ)	1.6A	85°C	51V	130 lm/W	3.2A	90	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
CXM-27-40-70-54-AA30-F4-3 LED COB 4000K SQUARE Luminus Devices Inc.	2,532	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	13875lm (Typ)	1.6A	85°C	51V	170 lm/W	3.2A	70	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
CXM-27-40-80-54-AA30-F4-3 LED COB 4000K SQUARE Luminus Devices Inc.	3,148	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	12935lm (Typ)	1.6A	85°C	51V	159 lm/W	3.2A	80	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
CXM-27-40-90-54-AA30-F4-3 LED COB 4000K SQUARE Luminus Devices Inc.	2,147	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	11220lm (Typ)	1.6A	85°C	51V	138 lm/W	3.2A	90	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
CXM-27-50-70-54-AA30-F4-5 LED COB 5000K SQUARE Luminus Devices Inc.	3,288	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Cool	5000K 5-Step MacAdam Ellipse	-	Square	14105lm (Typ)	1.6A	85°C	51V	173 lm/W	3.2A	70	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
CXM-27-50-80-54-AA30-F4-5 LED COB 5000K SQUARE Luminus Devices Inc.	3,999	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Cool	5000K 5-Step MacAdam Ellipse	-	Square	13025lm (Typ)	1.6A	85°C	51V	160 lm/W	3.2A	80	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
CXM-27-50-90-54-AA30-F4-5 LED COB 5000K SQUARE Luminus Devices Inc.	2,130	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Cool	5000K 5-Step MacAdam Ellipse	-	Square	11280lm (Typ)	1.6A	85°C	51V	138 lm/W	3.2A	90	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
CXM-27-65-70-54-AA30-F4-5 LED COB 6500K SQUARE Luminus Devices Inc.	2,653	-	RFQ	데이터시트	Tray	CXM-27 Gen3	Active	Chip On Board (COB)	White, Cool	6500K 5-Step MacAdam Ellipse	-	Square	14120lm (Typ)	1.6A	85°C	51V	173 lm/W	3.2A	70	120°	-	31.50mm L x 31.50mm W	-	26.50mm Dia
