LED 조명 - COB, 엔진, 모듈, 스트립

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)

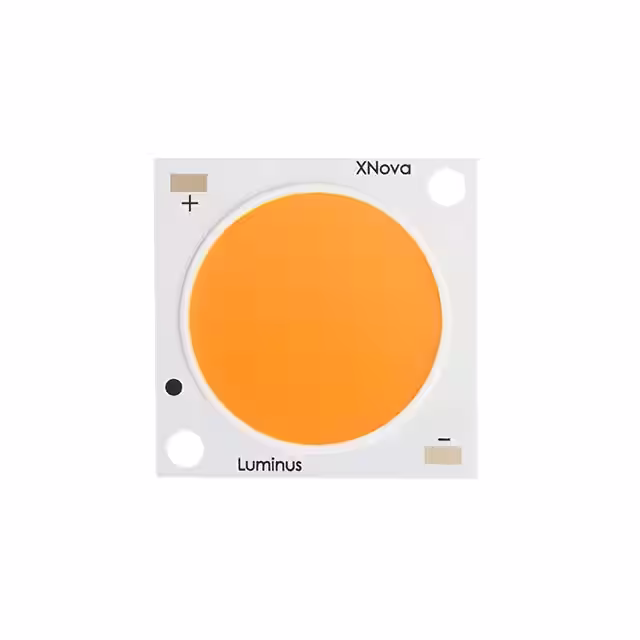

CXM-22-40-80-54-AC30-F4-3 LED COB 4000K SQUARE Luminus Devices Inc.	553	-	RFQ	데이터시트	Tray	CXM-22 Gen3	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	8645lm (Typ)	1.1A	85°C	51V	154 lm/W	2.4A	80	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-22-27-80-54-AC30-F4-3 LED COB 2700K SQUARE Luminus Devices Inc.	326	-	RFQ	데이터시트	Tray	CXM-22 Gen3	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	7840lm (Typ)	1.1A	85°C	51V	140 lm/W	2.4A	80	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-22-35-80-54-AC30-F4-3 LED COB 3500K SQUARE Luminus Devices Inc.	260	-	RFQ	데이터시트	Tray	CXM-22 Gen3	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	8530lm (Typ)	1.1A	85°C	51V	152 lm/W	2.4A	80	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-22-30-90-54-AC30-F4-3 LED COB 3000K SQUARE Luminus Devices Inc.	216	-	RFQ	데이터시트	Tray	CXM-22 Gen3	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	6970lm (Typ)	1.1A	85°C	51V	124 lm/W	2.4A	90	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-22-30-90-54-AC40-F5-3 GEN4 ARRAYS WHITE LED Luminus Devices Inc.	557	-	RFQ	데이터시트	Tray	CXM-22 Gen4	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	7325lm (Typ)	1.05A	85°C	50V	140 lm/W	3.5A	90	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-22-30-80-54-AC40-F5-3 LED COB CXM22 Luminus Devices Inc.	320	-	RFQ	데이터시트	Tray	CXM-22 Gen4	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	8660lm (Typ)	1.05A	85°C	50V	165 lm/W	3.5A	80	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-22-50-80-54-AC30-F4-3 LED COB 5000K SQUARE Luminus Devices Inc.	297	-	RFQ	데이터시트	Tray	CXM-22 Gen3	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Square	8700lm (Typ)	1.1A	85°C	51V	155 lm/W	2.4A	80	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CLM-22-HM-61-36-AC30-P1-3 LED COB CLM22 WHITE Luminus Devices Inc.	117	-	RFQ	데이터시트	Tray	CLM-22 Horticulture	Active	Chip On Board (COB)	White	-	-	Square	-	1.1A	85°C	34.7V	-	2.2A	-	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-32-40-70-54-AC00-F2-3 LED COB CXM32 NEUTRAL WHITE SQ Luminus Devices Inc.	298	-	RFQ	데이터시트	Tray	CXM-32	Not For New Designs	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	18920lm (Typ)	2.64A	85°C	52.5V	137 lm/W	3.96A	70	120°	-	38.00mm L x 38.00mm W	-	-
CXM-32-50-70-54-AC00-F2-5 LED COB CXM32 COOL WHITE SQUARE Luminus Devices Inc.	132	-	RFQ	데이터시트	Tray	CXM-32	Not For New Designs	Chip On Board (COB)	White, Cool	5000K 5-Step MacAdam Ellipse	-	Square	19385lm (Typ)	2.64A	85°C	52.5V	140 lm/W	3.96A	70	120°	-	38.00mm L x 38.00mm W	-	-

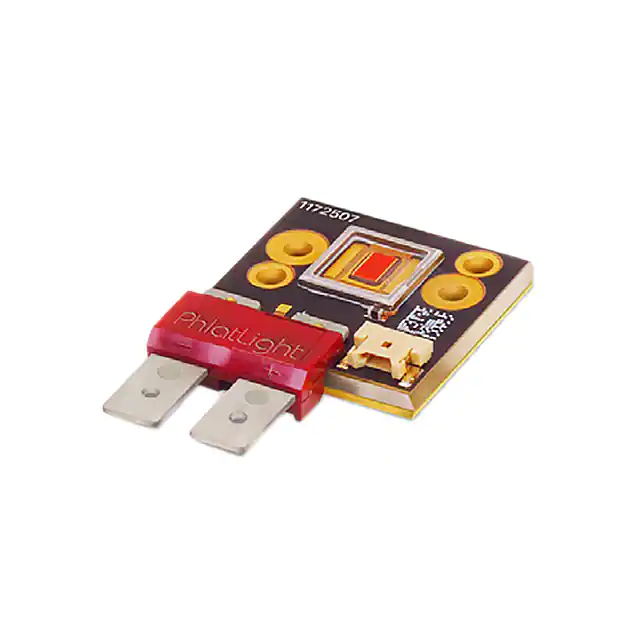

PT-120-RAX-L15-MPK BIG CHIP LED HB MODULE RED-AMBER Luminus Devices Inc.	2,379	-	RFQ	데이터시트	Tray	PT-120	Active	LED Module	Amber	-	613nm	Rectangle	2925lm (2450lm ~ 3400lm)	18A	40°C	3.1V	52 lm/W	27A	-	-	With Connector	28.00mm L x 42.00mm W	5.70mm	2.60mm L x 4.60mm W
CBM-120-FR-C15-RA100 LED FAR RED 735NM BIG CHIP Luminus Devices Inc.	2,089	-	RFQ	데이터시트	Tray	Mosaic Array	Active	LED Module	Red	-	735nm	Rectangle	-	9A	40°C	2.4V	-	-	-	-	With Connector	42.00mm L x 28.00mm W	5.70mm	-

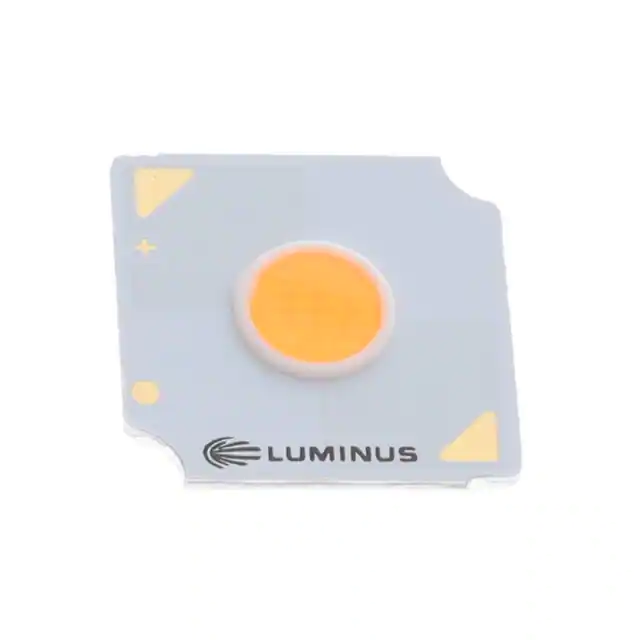

CXM-4-30-90-36-TC41-F5-2 LED COB CXM4 3000K Luminus Devices Inc.	2,400	-	RFQ	데이터시트	Tray	CXM-4	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Square	470lm (Typ)	120mA	25°C	33.8V	116 lm/W	400mA	90	120°	-	13.50mm L x 13.50mm W	1.37mm	4.50mm Dia

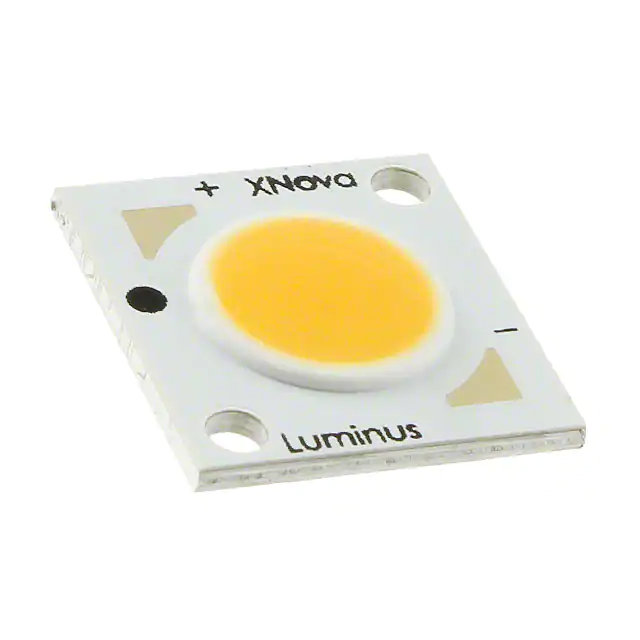

CXM-6-27-80-36-AA00-F2-3 LED COB WHT 6.3MM 2700K SMD Luminus Devices Inc.	100	-	RFQ	데이터시트	Tray	CXM-6	Not For New Designs	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	-	120mA	-	35V	-	240mA	80	120°	-	8.90mm L x 13.00mm W	1.37mm	6.30mm Dia
CTM-9-5022-90-36-TW01 LED COB CTM9 WHITE Luminus Devices Inc.	378	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

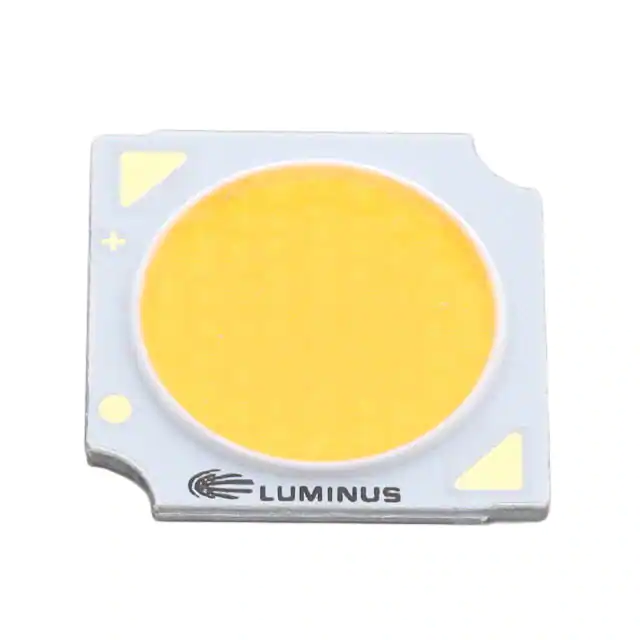

CXM-9-40-90-36-AC40-F5-3 COB Luminus Devices Inc.	390	-	RFQ	데이터시트	Tray	CXM-9	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	1650lm (Typ)	360mA	85°C	33.5V	137 lm/W	1.1A	90	120°	-	13.50mm L x 13.50mm W	1.37mm	9.80mm Dia

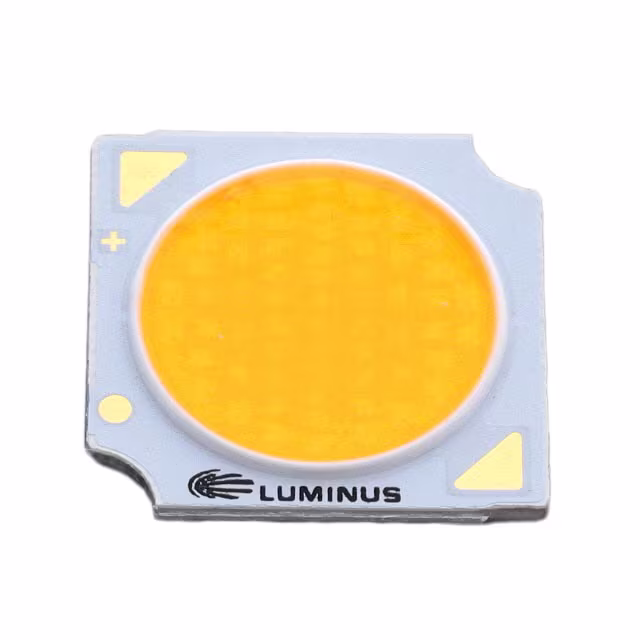

CXM-9-30-90-36-AC40-F5-3 COB Luminus Devices Inc.	350	-	RFQ	데이터시트	Tray	CXM-9	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	1570lm (Typ)	360mA	85°C	33.5V	130 lm/W	1.1A	90	120°	-	13.50mm L x 13.50mm W	1.37mm	9.80mm Dia

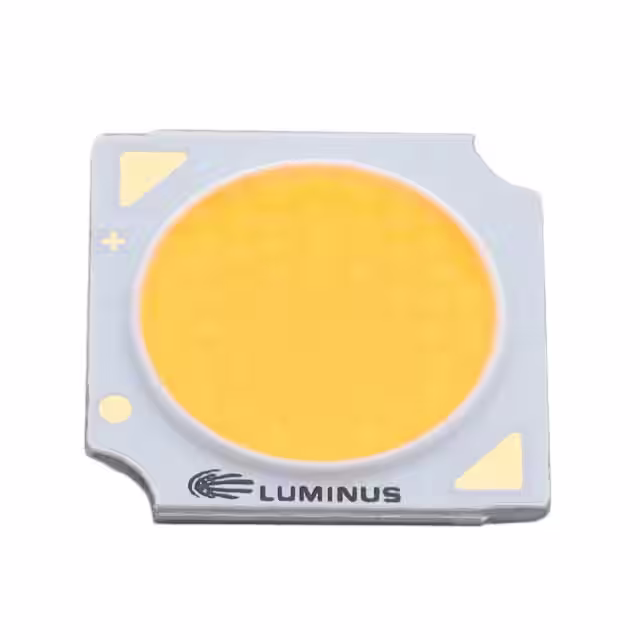

CXM-9-30-90-36-AC42-F5-3 COB Luminus Devices Inc.	400	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CXM-9-30-95-36-AC40-F5-3 COB Luminus Devices Inc.	143	-	RFQ	데이터시트	Tray	CXM-9	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	1355lm (Typ)	360mA	85°C	33.5V	112 lm/W	1.1A	95	120°	-	13.50mm L x 13.50mm W	1.37mm	9.80mm Dia

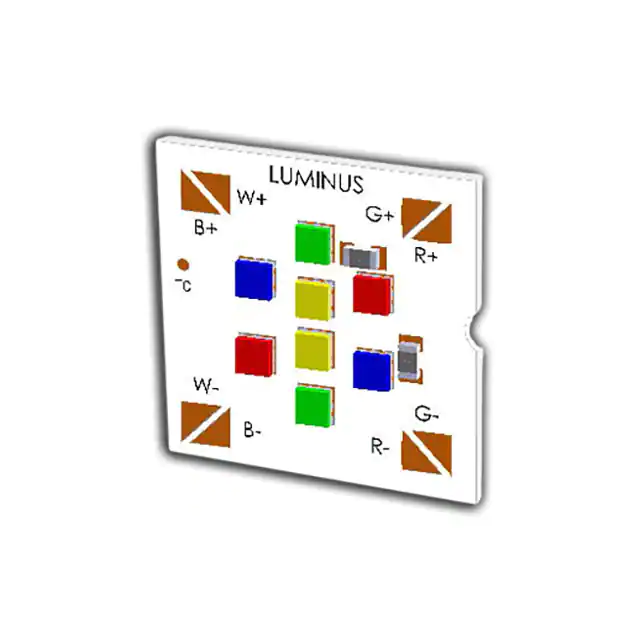

CTM-9-RGBW-12-TW01 LED CTM9 RGBW Luminus Devices Inc.	817	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
