더 많은 제품 카테고리

LED 조명 - COB, 엔진, 모듈, 스트립

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
CTM-18-4018-90-36-TW01 LED COB CTM18 WHITE Luminus Devices Inc.	2,414	-	RFQ	데이터시트	Tray	CTM, Human Centric (HCL)	Active	LED Module	White, Warm / White, Neutral	1800K ~ 4000K	-	Rectangle	1180lm Warm White, 1950lm Cool White	550mA	85°C	37V	58 lm/W Warm White, 96 lm/W Cool White	660mA	90	130°	-	24.00mm L x 20.00mm W	1.58mm	17.50mm Dia
CLM-22-HS-11-36-AC30-P1-7 LED LIGHTING COB, HORTICULTURE B Luminus Devices Inc.	2,123	-	RFQ		Tray	CLM-22 Horticulture	Active	Chip On Board (COB)	White	-	-	Square	-	1.1A	85°C	34.7V	-	2.2A	-	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-22-50-70-54-AC30-F4-3 LED COB 5000K SQUARE Luminus Devices Inc.	2,895	-	RFQ	데이터시트	Tray	CXM-22 Gen3	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Square	9425lm (Typ)	1.1A	85°C	51V	168 lm/W	2.4A	70	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CLM-22-HS-12-36-AC30-P1-7 LED LIGHTING COB, HORTICULTURE B Luminus Devices Inc.	3,898	-	RFQ		Tray	CLM-22 Horticulture	Active	Chip On Board (COB)	White	-	-	Square	-	1.1A	85°C	34.7V	-	2.2A	-	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-22-HS-11-54-AC30-P1-7 LED LIGHTING COB, HORTICULTURE B Luminus Devices Inc.	2,062	-	RFQ		Tray	Sensus™ Horticulture	Active	Chip On Board (COB)	White	-	-	Square	-	1.1A	85°C	51.5V	-	2.2A	-	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-22-HS-12-54-AC30-P1-7 LED LIGHTING COB, HORTICULTURE B Luminus Devices Inc.	2,950	-	RFQ		Tray	Sensus™ Horticulture	Active	Chip On Board (COB)	White	-	-	Square	-	1.1A	85°C	51.5V	-	2.2A	-	120°	-	28.00mm L x 28.00mm W	1.37mm	22.00mm Dia
CXM-32-27-80-54-AC30-F4-3 LED COB 2700K SQUARE Luminus Devices Inc.	2,850	-	RFQ	데이터시트	Tray	CXM-32 Gen3	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	16370lm (Typ)	2.2A	85°C	51V	146 lm/W	4.5A	80	120°	-	38.00mm L x 38.00mm W	-	32.80mm Dia
CXM-32-40-80-54-AC00-F2-3 LED COB CXM32 NEUTRAL WHITE SQ Luminus Devices Inc.	3,141	-	RFQ	데이터시트	Tray	CXM-32	Not For New Designs	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	18370lm (Typ)	2.64A	85°C	52.5V	133 lm/W	3.96A	80	120°	-	38.00mm L x 38.00mm W	-	-

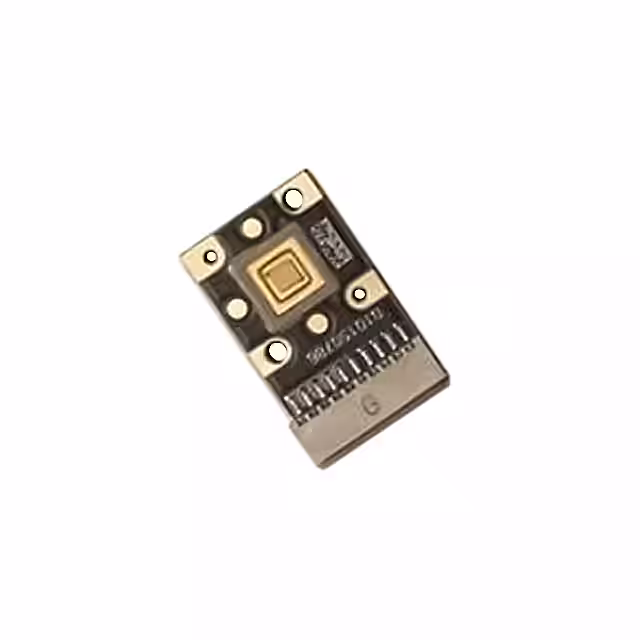

PT-54-G-L31-MPL LED MOD PT54 GREEN RECTANGLE Luminus Devices Inc.	3,404	-	RFQ	데이터시트	Tray	PT-54	Not For New Designs	LED Module	Green	-	525nm	Rectangle	2750lm (2300lm ~ 3200lm)	13.5A	40°C	5.2V	39 lm/W	-	-	-	With Connector	26.50mm L x 16.00mm W	6.40mm	2.00mm L x 2.70mm W
CXM-4-30-90-18-AC40-F5-3 COB Luminus Devices Inc.	370	-	RFQ	데이터시트	Tray	-	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	440lm (Typ)	240mA	85°C	16.9V	108 lm/W	800mA	90	120°	-	13.50mm L x 13.50mm W	1.37mm	4.50mm Dia
CXM-4-27-95-36-TC41-F5-2 LED COB CXM4 2700K Luminus Devices Inc.	190	-	RFQ	데이터시트	Tray	CXM-4	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Square	415lm (Typ)	120mA	25°C	33.8V	102 lm/W	400mA	95	120°	-	13.50mm L x 13.50mm W	1.37mm	4.50mm Dia
CXM-6-40-90-18-AC40-F5-3 COB Luminus Devices Inc.	400	-	RFQ	데이터시트	Tray	-	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	705lm (Typ)	300mA	85°C	16.65V	141 lm/W	900mA	90	120°	-	13.50mm L x 13.50mm W	1.37mm	6.30mm Dia
CXM-6-40-90-36-AC40-F5-3 COB Luminus Devices Inc.	399	-	RFQ	데이터시트	Tray	-	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	705lm (Typ)	150mA	85°C	33.3V	141 lm/W	450mA	90	120°	-	13.50mm L x 13.50mm W	1.37mm	6.30mm Dia
CXM-6-30-90-36-AC40-F5-3 COB Luminus Devices Inc.	397	-	RFQ	데이터시트	Tray	-	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	665lm (Typ)	150mA	85°C	33.3V	133 lm/W	450mA	90	120°	-	13.50mm L x 13.50mm W	1.37mm	6.30mm Dia
CXM-6-30-90-18-AC40-F5-3 COB Luminus Devices Inc.	390	-	RFQ	데이터시트	Tray	-	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	665lm (Typ)	300mA	85°C	16.65V	133 lm/W	900mA	90	120°	-	13.50mm L x 13.50mm W	1.37mm	6.30mm Dia
CXM-6-30-90-36-TC41-F5-2 LED COB CXM6 3000K Luminus Devices Inc.	293	-	RFQ	데이터시트	Tray	CXM-6	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Square	710lm (Typ)	150mA	25°C	33.3V	142 lm/W	450mA	90	120°	-	13.50mm L x 13.50mm W	1.37mm	6.30mm Dia
CXM-6-30-90-36-AC42-F5-3 COB Luminus Devices Inc.	400	-	RFQ	데이터시트	Tray	Sensus™ LED Gen4	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	655lm (Typ)	150mA	85°C	33.6V	130 lm/W	450mA	90	120°	-	13.50mm L x 13.50mm W	1.37mm	6.30mm Dia
CXM-6-30-95-36-AC40-F5-3 COB Luminus Devices Inc.	158	-	RFQ	데이터시트	Tray	-	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	590lm (Typ)	150mA	85°C	33.3V	118 lm/W	450mA	95	120°	-	13.50mm L x 13.50mm W	1.37mm	6.30mm Dia

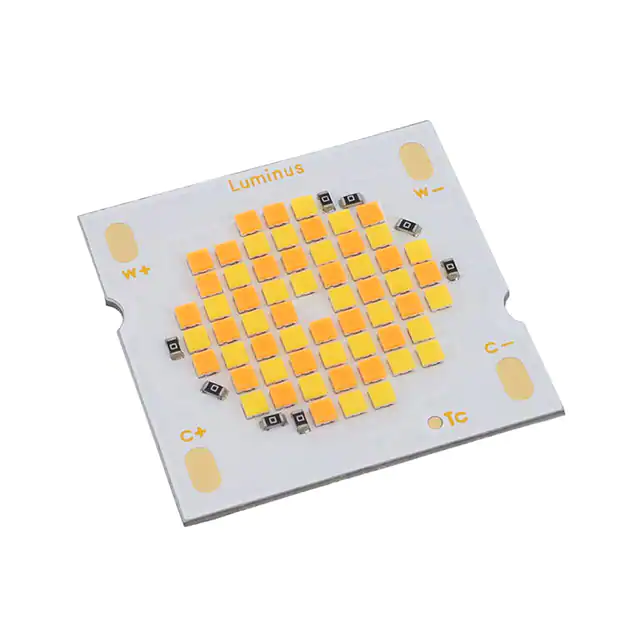

CTM-22-5022-90-36-TW01 LED COB CTM22 WHITE Luminus Devices Inc.	3,986	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PT-39-G-L51-CD100-R2 LED MOD PT39 GREEN RECTANGLE Luminus Devices Inc.	3,383	-	RFQ	데이터시트	Tray	PT-39	Active	LED Module	Green	-	520nm	Rectangle	2700mW (2600mW ~ 2800mW)	-	40°C	5V	-	12A	-	-	-	21.85mm L x 15.00mm W	3.70mm	-
