더 많은 제품 카테고리

LED 조명 - COB, 엔진, 모듈, 스트립

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
L2C2-50701211E1900 LED COB 5000K COOL WH 70CRI SMD Lumileds	3,897	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Square	6372lm (Typ)	1.2A	85°C	35V	152 lm/W	2.4A	70	115°	-	28.00mm L x 28.00mm W	1.50mm	18.50mm Dia
L2C2-50801202E0600 LED COB 5000K COOL WH 80CRI SMD Lumileds	3,382	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range Gen 2	Obsolete	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Rectangle	956lm (Typ)	200mA	85°C	34.5V	139 lm/W	400mA	80	115°	-	12.00mm L x 15.00mm W	1.50mm	6.50mm Dia
L2C2-50801202E0900 LED COB 5000K COOL WH 80CRI SMD Lumileds	3,220	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Rectangle	999lm (Typ)	200mA	85°C	34.5V	145 lm/W	400mA	80	115°	-	16.00mm L x 19.00mm W	1.50mm	9.00mm Dia
L2C2-50801204E1300 LED COB 5000K COOL WH 80CRI SMD Lumileds	3,955	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Rectangle	2187lm (Typ)	450mA	85°C	35V	139 lm/W	900mA	80	115°	-	20.00mm L x 24.00mm W	1.50mm	13.00mm Dia
L2C2-50801208E1500 LED COB 5000K COOL WH 80CRI SMD Lumileds	2,113	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Rectangle	4374lm (Typ)	900mA	85°C	35V	139 lm/W	1.8A	80	115°	-	20.00mm L x 24.00mm W	1.50mm	15.00mm Dia
L2C2-50801211E1900 LED COB 5000K COOL WH 80CRI SMD Lumileds	2,702	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Square	5832lm (Typ)	1.2A	85°C	35V	139 lm/W	2.4A	80	115°	-	28.00mm L x 28.00mm W	1.50mm	18.50mm Dia
L2C2-57701203E0900 LED COB 5700K COOL WH 70CRI SMD Lumileds	3,168	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Cool	5700K 3-Step MacAdam Ellipse	-	Rectangle	1526lm (Typ)	300mA	85°C	34.5V	147 lm/W	600mA	70	115°	-	16.00mm L x 19.00mm W	1.50mm	9.00mm Dia
L2C2-57701204E1300 LED COB 5700K COOL WH 70CRI SMD Lumileds	3,735	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Cool	5700K 3-Step MacAdam Ellipse	-	Rectangle	2288lm (Typ)	450mA	85°C	35V	145 lm/W	900mA	70	115°	-	20.00mm L x 24.00mm W	1.50mm	13.00mm Dia
L2C2-57701205E1300 LED COB 5700K COOL WH 70CRI SMD Lumileds	3,172	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Cool	5700K 3-Step MacAdam Ellipse	-	Rectangle	3051lm (Typ)	600mA	85°C	35V	145 lm/W	1.2A	70	115°	-	20.00mm L x 24.00mm W	1.50mm	13.00mm Dia
L2C2-57701211E1900 LED COB 5700K COOL WH 70CRI SMD Lumileds	2,654	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Cool	5700K 3-Step MacAdam Ellipse	-	Square	6102lm (Typ)	1.2A	85°C	35V	145 lm/W	2.4A	70	115°	-	28.00mm L x 28.00mm W	1.50mm	18.50mm Dia

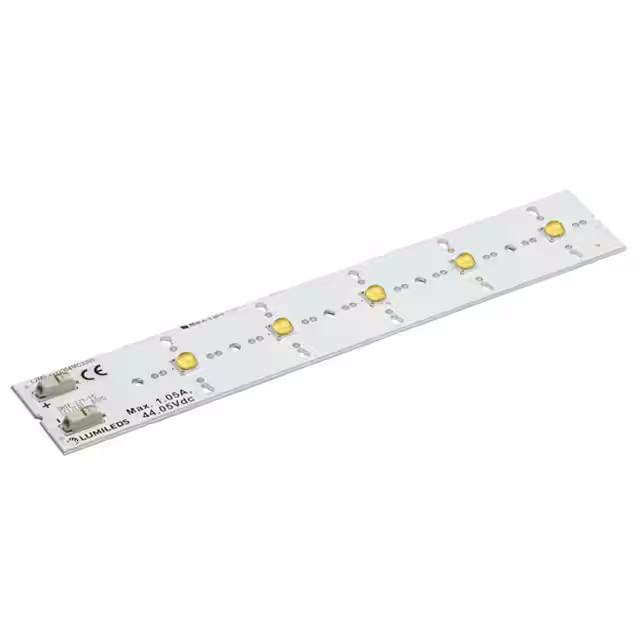

L2M0-5770005MC3300 LED XR-M 5700K 5-UP LINEAR Lumileds	3,754	-	RFQ	데이터시트	Tray	LUXEON XR-M	Obsolete	LED Module	White, Cool	5700K	-	Linear Light Strip	5397lm (Typ)	700mA	85°C	54.8V	141 lm/W	1.05A	70	-	-	198.00mm L x 33.00mm W	6.21mm	-

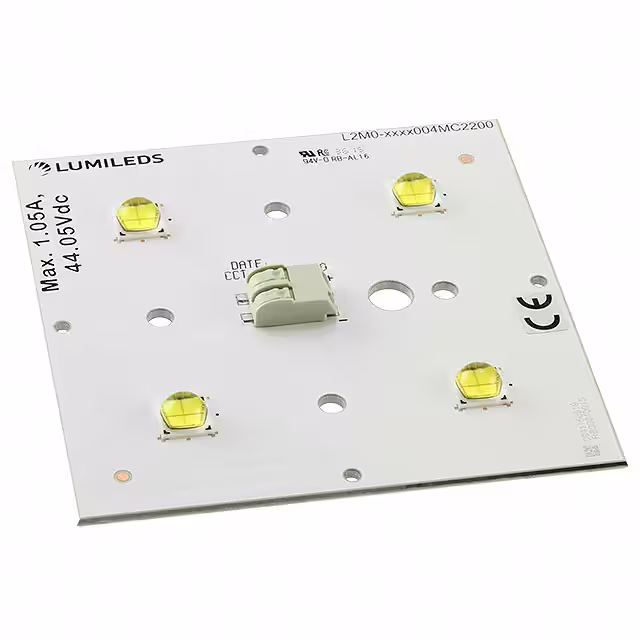

L2M0-5770004MC2200 LED XR-M 5700K 4-UP SQUARE Lumileds	2,808	-	RFQ	데이터시트	Tray	LUXEON XR-M	Obsolete	LED Module	White, Cool	5700K	-	Square	4318lm (Typ)	700mA	85°C	43.8V	141 lm/W	1.05A	70	-	-	73.00mm L x 73.00mm W	6.21mm	-
L2C2-30801216E2300 LED COB 1216 3000K 80CRI Lumileds	2,779	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Warm	3000K	-	Square	7236lm (Typ)	1.6A	85°C	35V	129 lm/W	3.2A	80	115°	-	28.00mm L x 28.00mm W	1.50mm	23.00mm Dia
L2C2-40801216E2300 LED COB 1216 4000K 80CRI Lumileds	3,471	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Neutral	4000K	-	Square	7780lm (Typ)	1.6A	85°C	35V	139 lm/W	3.2A	80	115°	-	28.00mm L x 28.00mm W	1.50mm	23.00mm Dia
L2C2-40701216E2300 LED COB 1216 4000K 70CRI Lumileds	3,020	-	RFQ	데이터시트	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Neutral	4000K	-	Square	8538lm (Typ)	1.6A	85°C	35V	152 lm/W	3.2A	70	115°	-	28.00mm L x 28.00mm W	1.50mm	23.00mm Dia

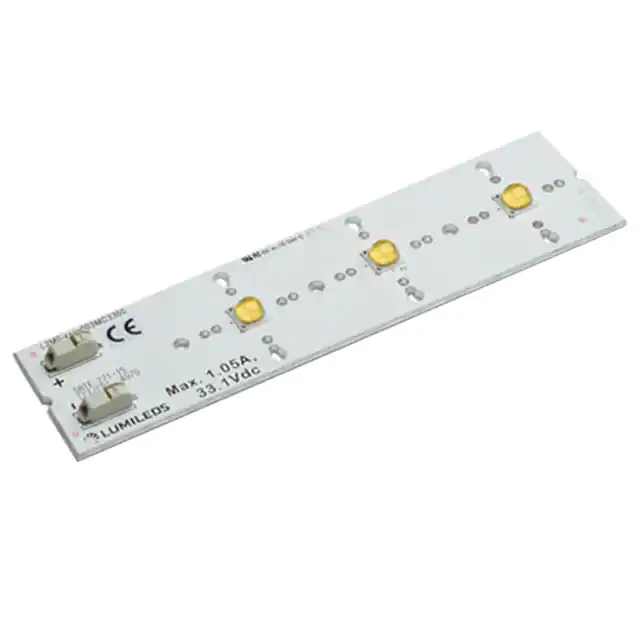

L2M0-5070003MC3300 LED XR-M 5000K 3-UP LINEAR Lumileds	2,684	-	RFQ	데이터시트	Tray	LUXEON XR-M	Obsolete	LED Module	White, Cool	5000K	-	Linear Light Strip	3272lm (Typ)	700mA	85°C	33V	142 lm/W	1.05A	70	-	-	132.00mm L x 33.00mm W	6.21mm	-

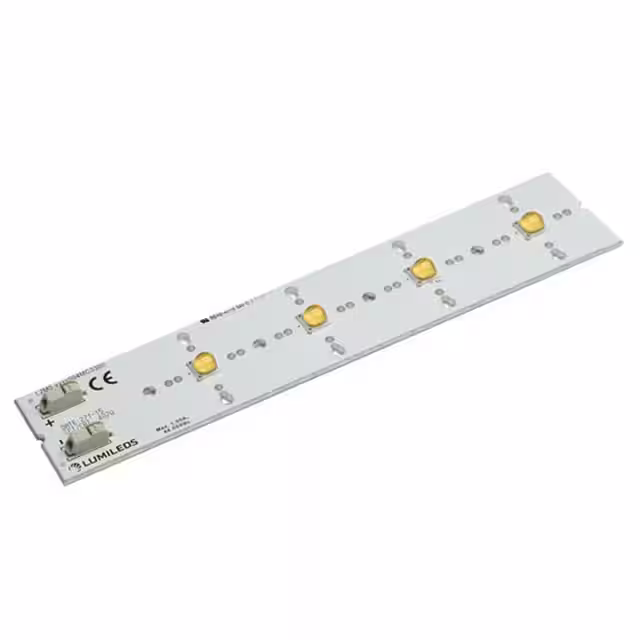

L2M0-4070004MC3300 LED XR-M 4000K 4-UP LINEAR Lumileds	2,361	-	RFQ	데이터시트	Tray	LUXEON XR-M	Obsolete	LED Module	White, Neutral	4000K	-	Linear Light Strip	4211lm (Typ)	700mA	85°C	43.8V	137 lm/W	1.05A	70	-	-	165.00mm L x 33.00mm W	6.21mm	-
L2M0-5070004MC3300 LED XR-M 5000K 4-UP LINEAR Lumileds	3,755	-	RFQ	데이터시트	Tray	LUXEON XR-M	Obsolete	LED Module	White, Cool	5000K	-	Linear Light Strip	4363lm (Typ)	700mA	85°C	43.8V	142 lm/W	1.05A	70	-	-	165.00mm L x 33.00mm W	6.21mm	-
L2M0-4070005MC3300 LED XR-M 4000K 5-UP LINEAR Lumileds	3,690	-	RFQ	데이터시트	Tray	LUXEON XR-M	Obsolete	LED Module	White, Neutral	4000K	-	Linear Light Strip	5264lm (Typ)	700mA	85°C	54.8V	137 lm/W	1.05A	70	-	-	198.00mm L x 33.00mm W	6.21mm	-
L2M0-5070005MC3300 LED XR-M 5000K 5-UP LINEAR Lumileds	3,187	-	RFQ	데이터시트	Tray	LUXEON XR-M	Obsolete	LED Module	White, Cool	5000K	-	Linear Light Strip	5454lm (Typ)	700mA	85°C	54.8V	142 lm/W	1.05A	70	-	-	198.00mm L x 33.00mm W	6.21mm	-
